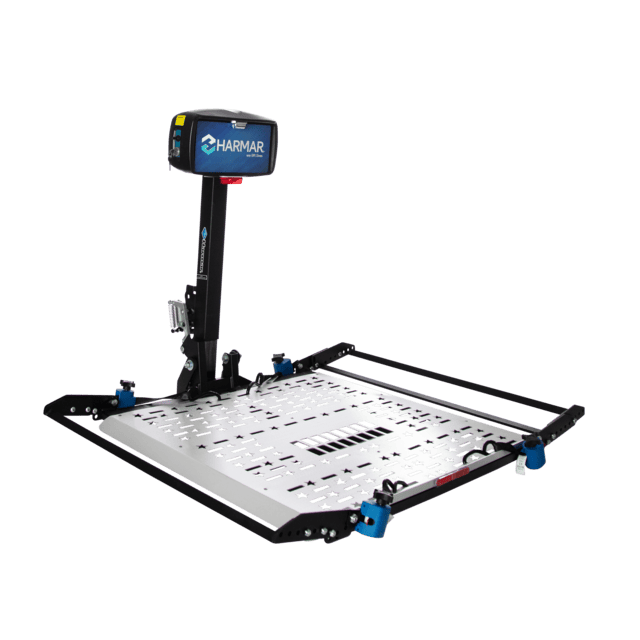

Harmar AL301XLHD Heavy-duty Extra Large Fusion Lift
Built for larger power wheelchairs and larger scooters, the Harmar AL301XLHD is the heavy-duty version of the AL301XL Fusion Hitch-Mount Lift, with a 400 lb lifting capacity.
- Installed and serviced in Georgia
- In business since 1990
- 400 lb lifting capacity
- 36" x 39" platform
- Class III or greater hitch
- 4 Q'Straint retractors
About the Harmar AL301XLHD Heavy-duty Extra Large Fusion Lift
Built for larger power wheelchairs and larger scooters, the Harmar AL301XLHD is the heavy-duty version of the AL301XL Fusion Hitch-Mount Lift, with a 400 lb lifting capacity.
Its 36 by 39 inch platform has an adjustable cradle that extends up to 53 inches. Four self-tensioning Q'Straint retractors work with front and rear wheel cradles to hold the device. Harmar says the cradles and retractors keep a larger mobility device safe and secure as you hit the road.
Lifting and folding are fully powered, and the scooter or chair needs no modifications. The HD calls for a Class III or greater hitch, and Harmar lists its installed weight at 102 lb. Included are the AL107 hitch post, the AL123HD class III heavy duty hitch adapter and a license plate mount. It is compatible with minivans, SUVs, trucks and vans, and a swing-away, cover, license plate riser and battery pack are available.
Heavier devices make the vehicle match matter, and we confirm the fit for your vehicle and device. Once that is settled, Custom Mobility's own technicians install the lift in Georgia, and we service it in Georgia.
Vehicle Lifts We Have Installed
Photos from our own jobs. Not every photo shows this model.
Mason Irby setting up a vehicle lift platform at the back of a red pickup truck
How The Work Happens
Five steps. You can stop at any of them, and nothing is charged until you have said yes to a written scope.
You tell us what is difficult
Not what product you think you need. The stairs, the front step, the bath, getting into the car. Working out the product is our job.
A call, not a sales pitchWe come out and measure
On site, at your address, free. We check the space, the power, and the structure, and we talk through how the room actually gets used.
Free, and no obligationYou get it in writing
An itemized scope and a price, with the lead time stated honestly. The price you agree to is the price of the job. Take as long as you like with it.
The price does not moveOur technicians install it
Our own people, not a subcontractor, who stay until everyone who has to operate it can operate it confidently.
Our own crewsWe service it afterward
The company that installed it is the company that maintains it. You are not handed to somebody else once the invoice clears.
Same company, years later
What Our Customers Say
Google reviews of our company and our technicians, not of this one product.
Installation and service in Georgia
Priced for your home, installation included. Installation and service are in Georgia.
- Installed by our own technicians, from our base in Athens.
- We service what we sell. The person who comes back is from the same company as the person who installed it.
- Preventive maintenance agreements are available on anything we install.
Tell us about the vehicle and the device, and a mobility specialist will confirm the fit before anything is ordered.
Key specs
- Lifting capacity
- 400 lb
- Accommodates
- larger power wheelchairs, larger scooters
- Installed weight
- 102 lb
- Platform size
- 36" x 39"
- Adjustable cradle
- extends up to 53"
- Hitch class
- III or greater
- Powered
- fully powered
- Securement
- 4 self-tensioning Q'Straint retractors, front and rear wheel cradles
- Vehicles
- minivans, SUVs, trucks, vans
- Available options
- battery pack, cover, license plate riser, swing-away
Specifications as published by Harmar: maker's spec sheet.
What's included
- AL107 hitch post
- AL123HD class III heavy duty hitch adapter
- License plate mount
Warranty
The maker's warranty for this model.
- Parts: 3 years (material, mechanical and electrical components)
- Excludes labor cost, batteries, paint, rust and covers
- Starts on the date of initial installation
- Certificate returned to Harmar within 10 days of installation
- Lift installed, maintained and operated properly by an authorized Harmar distributor or certified installer
- Transferable when the application is approved by Harmar's Compatibility Calculator
- Maintenance and adjustments not covered
Repairs and replacements under warranty are processed in coordination with the manufacturer.
