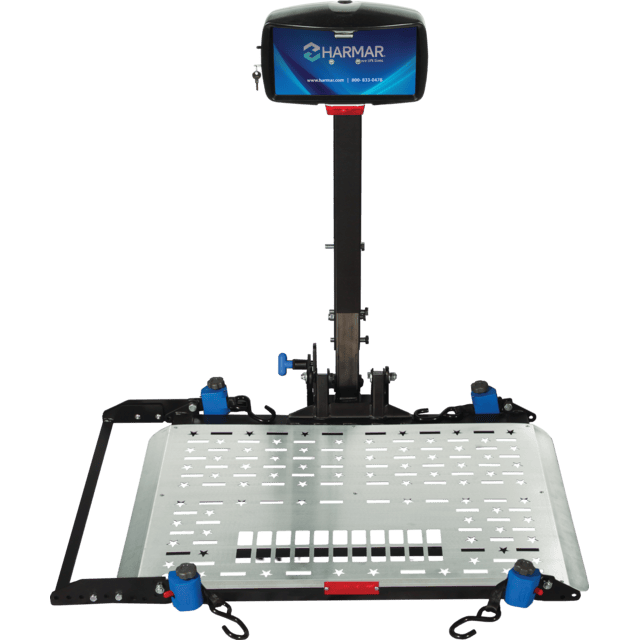

Harmar AL300RV lift with platform and tie-down straps

Click to zoom

Harmar · Scooter Lifts

Harmar AL300RV RV Lift

Priced for your home, installation included

Harmar designed the AL300RV RV Hitch-Mount Lift specifically for RVs, engineered to handle the added stress they put on a lift while on the road. It brings along powerchairs and scooters up to 350 lbs.

Installed and serviced in Georgia
In business since 1990
350 lb lifting capacity
Designed specifically for RVs
Drop hitch adapter, up to 26"
Power lift, manual fold

Licensed & Insured Factory-trained, certified technicians Reviews on Google BBB Accredited Business

Brand: Harmar

Type: Scooter Lift

SKU: AL300RV

About the Harmar AL300RV RV Lift

A drop hitch adapter comes standard and adjusts up to a 26-inch hitch height, and a pusher hitch adapter upgrade adjusts up to 32 inches. It needs a Class III or greater hitch and includes the H300102 class III reinforced hitch adapter, the AL107 hitch post and a license plate mount.

Lifting is powered, and the lift folds manually when not in use for travel and storage. Four self-tensioning Q'Straint retractors and a rear wheel cradle secure the device on a 26 by 39 inch platform with an adjustable cradle that extends up to 46 inches. Installed weight is 82 lb, and no scooter or power chair modifications are needed. A battery pack and a cover are available.

As with every lift we fit, we confirm the fit for your vehicle and device. Custom Mobility's own technicians install the AL300RV in Georgia, and service is handled in Georgia.

Vehicle Lifts We Have Installed

Photos from our own jobs. Not every photo shows this model.

Mason Irby setting up a vehicle lift platform at the back of a red pickup truck

How The Work Happens

Five steps. You can stop at any of them, and nothing is charged until you have said yes to a written scope.

You tell us what is difficult
Not what product you think you need. The stairs, the front step, the bath, getting into the car. Working out the product is our job.
A call, not a sales pitch
We come out and measure
On site, at your address, free. We check the space, the power, and the structure, and we talk through how the room actually gets used.
Free, and no obligation
You get it in writing
An itemized scope and a price, with the lead time stated honestly. The price you agree to is the price of the job. Take as long as you like with it.
The price does not move
Our technicians install it
Our own people, not a subcontractor, who stay until everyone who has to operate it can operate it confidently.
Our own crews
We service it afterward
The company that installed it is the company that maintains it. You are not handed to somebody else once the invoice clears.
Same company, years later

Installation and service in Georgia

Priced for your home, installation included. Installation and service are in Georgia.

Installed by our own technicians, from our base in Athens.
We service what we sell. The person who comes back is from the same company as the person who installed it.
Preventive maintenance agreements are available on anything we install.

Tell us about the vehicle and the device, and a mobility specialist will confirm the fit before anything is ordered.

Request your quote

Service and repair

Key specs

Lifting capacity: 350 lb
Accommodates: power wheelchairs, scooters
Installed weight: 82 lb
Platform size: 26" x 39"
Adjustable cradle: extends up to 46"
Hitch class: III or greater
Drop hitch adapter (standard): up to 26" hitch height
Pusher hitch adapter (upgrade): up to 32" hitch height
Powered: power lifting, manual fold
Securement: 4 self-tensioning Q'Straint retractors, rear wheel cradle
Vehicles: RVs
Available options: battery pack, cover

Specifications as published by Harmar: maker's spec sheet.

What's included

AL107 hitch post
H300102 class III reinforced hitch adapter
License plate mount

Warranty

The maker's warranty for this model.

Parts: 3 years (material, mechanical and electrical components)
Excludes labor cost, batteries, paint, rust and covers
Starts on the date of initial installation
Certificate returned to Harmar within 10 days of installation
Lift installed, maintained and operated properly by an authorized Harmar distributor or certified installer
Transferable when the application is approved by Harmar's Compatibility Calculator
Maintenance and adjustments not covered

Repairs and replacements under warranty are processed in coordination with the manufacturer.

Full warranty terms from Harmar

Why buy from Custom Mobility

Custom Mobility is My Mobility.

Since 1990The company was founded in 1990 and has operated continuously since.
Georgia installation and serviceOur technicians are mobile and come to your home, facility, or fleet yard anywhere in Georgia.
Ships across the lower 48Products ship across the lower 48.
We service what we sellWith our own technicians, from the same company that sold it.
A showroom in AthensWalk-ins are welcome at 315 Whitehead Road.

Common questions

Will this work with my vehicle?

That depends on the vehicle and the equipment. We check compatibility before you order anything, which is exactly the step that goes wrong when it is skipped.

Will it fit in my car?

Ask this at the start rather than after delivery. Folding and travel models go in a trunk. A full-size chair needs a vehicle lift or a conversion, and we do those too.

Do I have to buy a van?

Usually not, and most people assume they do. Hand controls, a lift, or a turning seat solve a great many situations for a fraction of a conversion. Ask before you go vehicle shopping.

Will this affect my vehicle warranty?

Properly fitted equipment from established manufacturers does not generally affect it, though we would not ask you to take our word over your dealer's. We will tell you exactly what we are fitting and how.

Do you service what you sell?

Yes, with our own technicians. The person who comes back is from the same company as the person who installed it.

Will you service equipment somebody else installed?

Often, depending on the platform and whether we hold the relationship with that manufacturer. Tell us what you have.
