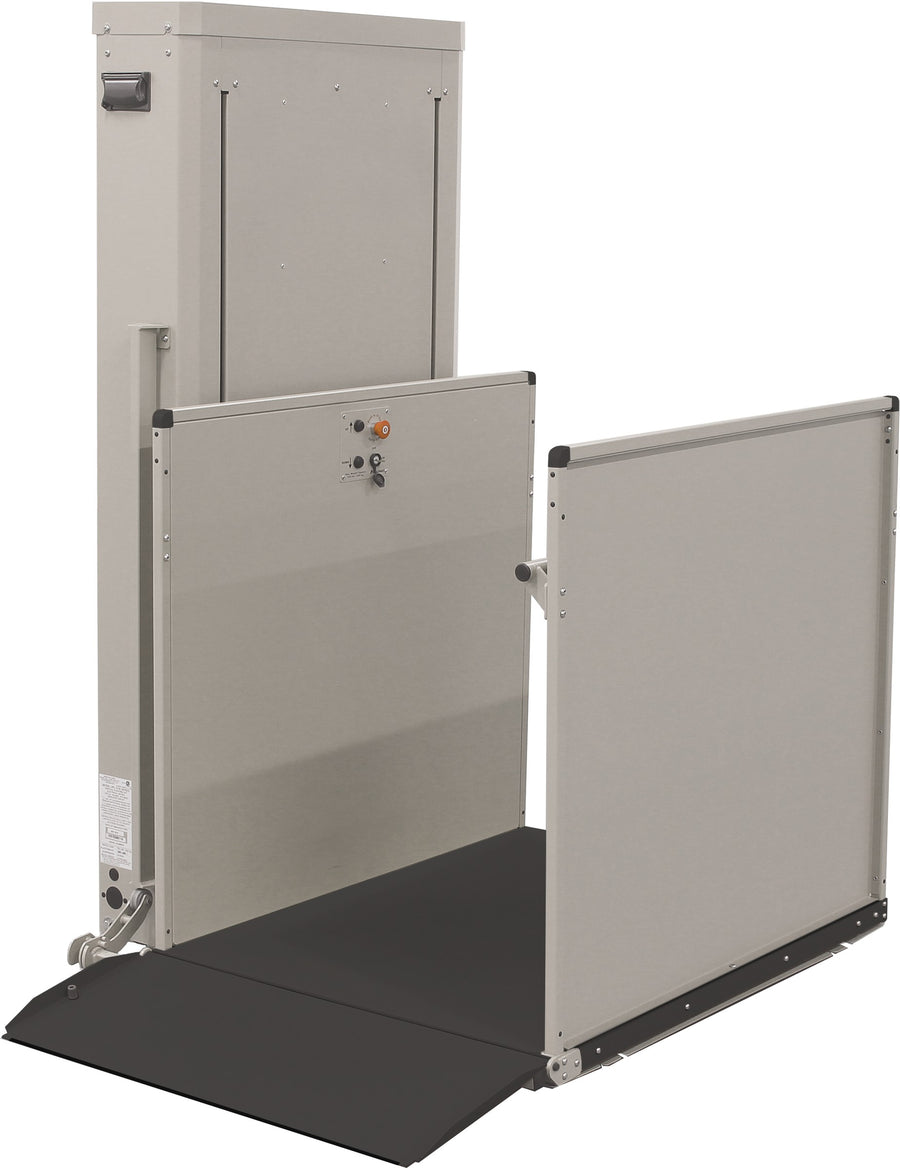

Bruno residential vertical platform lift (VPL-3100/3200B series shown) with a gate and ramp, on white

Click to zoom

Bruno · Home Accessibility

Bruno VPL-3210B Vertical Platform Lift

Priced for your home, installation included

For a deck or entry that sits well above the ground, the Bruno VPL-3210B serves up to 123” floor to floor. It is a residential vertical platform lift for 1 passenger with a mobility device, with a 750 lb rated load.

Installed and serviced in Georgia
In business since 1990
Up to 123” floor to floor
750 lb rated load
Battery (DC) powered
Keyed emergency lowering

Licensed & Insured Factory-trained, certified technicians Reviews on Google BBB Accredited Business

Brand: Bruno

Type: Vertical Platform Lift

SKU: VPL-3210B

About the Bruno VPL-3210B Vertical Platform Lift

Battery power is standard here. Bruno says its battery option keeps working in a power outage and gives several round trips without recharging. The VPL-3210B is the DC-powered model, with an internal battery charger.

Under the platform, a 1 hp motor drives a 1 1/4” Acme screw with a bronze nut and a bronze safety back up nut, and the lift travels at up to 10 ft/min. For emergencies, an external lockable keyed switch lowers the platform by means of a separate battery located inside the electrical enclosure.

Adjustable upper and lower limit switches and an upper final limit switch are part of the design. Optional gates use Bruno interlocks: the top landing gate releases only when the platform is at the upper landing, and electronic sensors stop the platform unless the door is closed. Other options include a cold-weather package, gate operators, a pit switch and a flood zone tower, which puts the electronics and batteries on the top section of the tower.

The VPL-3210B is made in the USA. Custom Mobility installs it in Georgia with its own technicians and services it here.

Platform Lifts We Have Installed

Photos from our own jobs. Not every photo shows this model.

Harmar vertical platform lift beside a deck, its enclosure door open onto the platform
Harmar outdoor vertical platform lift running up the side of a raised deck
Harmar vertical platform lift call station with a key switch and up and down buttons on a post

How The Work Happens

Five steps. You can stop at any of them, and nothing is charged until you have said yes to a written scope.

You tell us what is difficult
Not what product you think you need. The stairs, the front step, the bath, getting into the car. Working out the product is our job.
A call, not a sales pitch
We come out and measure
On site, at your address, free. We check the space, the power, and the structure, and we talk through how the room actually gets used.
Free, and no obligation
You get it in writing
An itemized scope and a price, with the lead time stated honestly. The price you agree to is the price of the job. Take as long as you like with it.
The price does not move
Our technicians install it
Our own people, not a subcontractor, who stay until everyone who has to operate it can operate it confidently.
Our own crews
We service it afterward
The company that installed it is the company that maintains it. You are not handed to somebody else once the invoice clears.
Same company, years later

Installation and service in Georgia

Priced for your home, installation included. Installation and service are in Georgia.

Installed by our own technicians, from our base in Athens.
We service what we sell. The person who comes back is from the same company as the person who installed it.
Preventive maintenance agreements are available on anything we install.

Answer a few questions about your home and see your price, installation included.

Build your quote

Service and repair

Key specs

Rated load: 750 lb (340 kg) maximum
Passengers: 1 passenger with mobility device
Lifting height: 123” maximum floor-to-floor
Applications: residential, indoors, outdoors
Power: DC battery-powered
Charger: internal, 5A, 24VDC output
Motor: 1 hp, 24VDC
Final drive: 1 1/4” Acme screw, bronze nut
Speed: 10 ft/min maximum
Landings: 2-Stop
Lower ramp: 16” self-lowering
Emergency lowering: external lockable keyed switch
Weight: 1190 lb (with batteries)
Finish: champagne powder coat
Cold-weather package: below 20ºF (option)
Flood zone tower: option

Specifications as published by Bruno: maker's spec sheet.

Warranty

The maker's warranty for this model.

All parts: 1 year after installation
Major components (motor, Acme screw and drive nut, brake, pulleys, belt, screw bearings): 2 years
Labor: first 30 days after installation, by a Bruno Authorized Dealer
For the original buyer; service and warranty through the installing Bruno Authorized Dealer
Excludes misuse, abuse, accidents, neglect, consumables and reasonable wear and tear

Repairs and replacements under warranty are processed in coordination with the manufacturer.

Full warranty terms from Bruno

Why buy from Custom Mobility

Custom Mobility is My Mobility.

Since 1990The company was founded in 1990 and has operated continuously since.
Georgia installation and serviceOur technicians are mobile and come to your home, facility, or fleet yard anywhere in Georgia.
Ships across the lower 48Products ship across the lower 48.
We service what we sellWith our own technicians, from the same company that sold it.
A showroom in AthensWalk-ins are welcome at 315 Whitehead Road.

Common questions

How much space does it need?

Far less than a ramp. ADA guidance calls for twelve inches of ramp run for every inch of rise, so a thirty inch porch wants a thirty foot ramp. Most front yards cannot give that up. A platform lift needs roughly the footprint of the platform itself.

Can I use it with a walker or a rollator rather than a wheelchair?

Yes. The platform is flat with a gate at each end, so you walk or roll straight on. Many of our residential platform lifts are used by people who are unsteady on steps rather than by chair users.

Does it need a pit?

Some configurations do and some do not. The site survey settles it before you are quoted.

Do you handle the permit and inspection?

Yes. This equipment generally requires a licensed installer and an inspection, and we hold that licensing in our own name rather than borrowing it from a subcontractor.

Can it go outdoors?

Yes, with weather-rated equipment: sealed controls, drainage, and a cover. We will not install an indoor unit outside, because it fails within a season.

How long does the whole job take?

Weeks rather than days, and most of that is site preparation and permitting rather than the installation itself. If a concrete pad has to be poured and cured, that is the long pole.

Do you service what you sell?

Yes, with our own technicians. The person who comes back is from the same company as the person who installed it.
