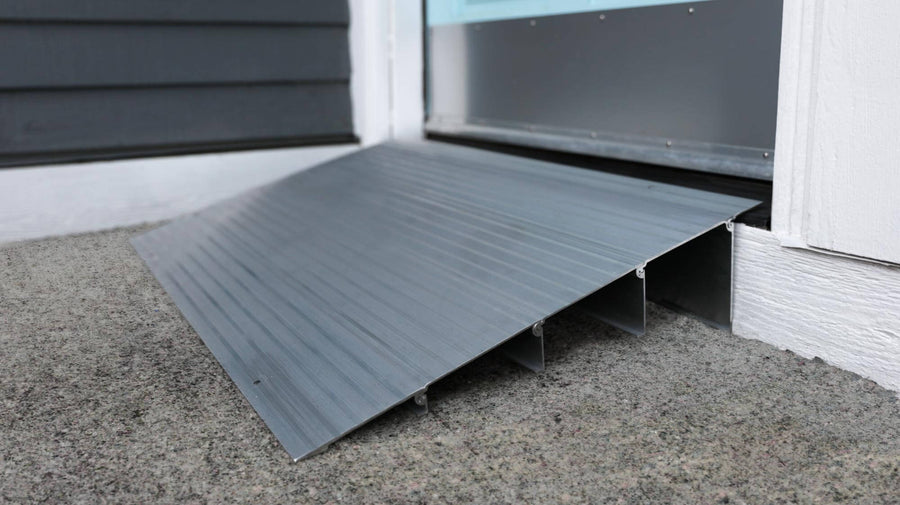

EZ-ACCESS TRANSITIONS Modular Entry Ramp

$44.99

The 1 in size weighs 3 lbs; the 6 in, 20 lbs. In between sit the 1.5, 2, 3, 4 and 5 in heights of the EZ-ACCESS TRANSITIONS Modular Entry Ramp, a sectioned aluminum ramp for doorways, raised landings and sliding glass doors.

Ships across the lower 48
Service and repair in Georgia
In business since 1990
Aluminum threshold ramp in 1, 1.5, 2, 3, 4, 5 and 6 in heights, 34 in wide
Usable height ranges from .75 in (1 in size) to 6.25 in (6 in size)
Pivoting top flap adds 1/4 in of adjustment; leave it out to butt the ramp against the door, clear of a sliding door track
Sections hook together with supplied screws; remove sections to use it at a lower height
Weight capacity 700 lbs

Licensed & Insured Factory-trained, certified technicians Reviews on Google BBB Accredited Business

Size

Brand: EZ-ACCESS

Type: Threshold Ramps

SKU: TMER 1

Tags: EZ-ACCESS ezaccess-retail-1027 Ramps

About the EZ-ACCESS TRANSITIONS Modular Entry Ramp

EZ-ACCESS gives each size a usable range, from .75 to 1.25 in on the smallest to 5.75 to 6.25 in on the largest. The top flap pivots and adds 1/4 in. Slide it in so it rests on the threshold, or keep it out so the ramp sits against the door and leaves a track alone. Taking off one or more sections lowers the ramp.

The surface is extruded and slip-resistant, the width is 34 in and the rating is 700 lbs. Screws to join the sections come in the box, and there are pre-drilled holes for anchoring at both ends.

Key specs

Usable size with top flap (L x W x H): 1 in: 6.67 x 34 x 1 in; 1.5 in: 9.19 x 34 x 1.5 in; 2 in: 11.67 x 34 x 2 in; 3 in: 16.64 x 34 x 3 in; 4 in: 21.64 x 34 x 4 in; 5 in: 26.64 x 34 x 5 in; 6 in: 31.64 x 34 x 6 in
Usable size without top flap (L x W x H): 1 in: 4.82 x 34 x 1 in; 1.5 in: 7.32 x 34 x 1.5 in; 2 in: 9.8 x 34 x 2 in; 3 in: 14.77 x 34 x 3 in; 4 in: 19.77 x 34 x 4 in; 5 in: 24.77 x 34 x 5 in; 6 in: 29.77 x 34 x 6 in
Usable height range: 1 in: .75 to 1.25 in; 1.5 in: 1.25 to 1.75 in; 2 in: 1.75 to 2.25 in; 3 in: 2.75 to 3.25 in; 4 in: 3.75 to 4.25 in; 5 in: not clearly printed by EZ-ACCESS; 6 in: 5.75 to 6.25 in
Weight: 1 in: 3 lbs; 1.5 in: 5 lbs; 2 in: 5.5 lbs; 3 in: 8 lbs; 4 in: 11 lbs; 5 in: 15 lbs; 6 in: 20 lbs
Weight capacity: 700 lbs
Material: high-strength aluminum
Surface: extruded slip-resistant surface

What's included

Package contents vary by ramp size (EZ-ACCESS)
EZ-ACCESS TRANSITIONS Modular Entry Ramp (1)
Size 10-24 x 1/2 in thread cutting slotted hex washer head screws: 4 with the 1 in, 1.5 in or 2 in size; 8 with the 3 in or 4 in size; 12 with the 5 in or 6 in size
Self drilling, self tapping pan head Phillips screws, 1/4 in x 1 in long
Instructions (1)

Warranty

The maker's warranty for this model.

EZ-ACCESS Lifetime Limited Warranty: covers defects in material and workmanship under normal use and service for the lifetime of the product
Applies to EZ-ACCESS parts and components only; excludes powder-coated finish and applied non-skid tape
Original purchaser only, non-transferable; proof of purchase required

Repairs and replacements under warranty are processed in coordination with the manufacturer.

Shipping and delivery

Ships to the contiguous US (lower 48) only.
Most orders are processed within 2-5 business days; some brands differ.
Shipping is free to the customer on online orders over $500.
We cover sales tax on every online order.

Service and repair are in Georgia.

Shipping policy

Why buy from Custom Mobility

Custom Mobility is My Mobility.

Since 1990The company was founded in 1990 and has operated continuously since.
Georgia installation and serviceOur technicians are mobile and come to your home, facility, or fleet yard anywhere in Georgia.
Ships across the lower 48Products ship across the lower 48.
We service what we sellWith our own technicians, from the same company that sold it.
A showroom in AthensWalk-ins are welcome at 315 Whitehead Road.

Common questions

How long does a ramp take?

A modular ramp is typically installed in a day. Permanent construction takes longer and may need a permit.

Will a ramp fit my entrance?

ADA guidance is twelve inches of run per inch of rise. Where there is not room, a platform lift usually is the answer.

What slope does a ramp actually need?

Roughly twelve inches of run for every inch of rise, plus level landings at the top, the bottom, and every turn. A four-foot rise wants close to fifty feet of ramp, which is when a platform lift takes less room.

Modular or poured concrete?

Modular installs fast and comes back out. Poured concrete is permanent and can be finished to match the house. The right answer depends mostly on how long you need it.

Is a permit needed?

Sometimes, particularly for permanent ramps and for commercial work. We handle it, and we will tell you at the quote if one applies.

Do you fit automatic door openers?

Yes, residential and commercial. Where a door is too heavy to manage with a walker, a cane, or full hands, a powered operator often solves more than a ramp does.

Do you service what you sell?

Yes, with our own technicians. The person who comes back is from the same company as the person who installed it.
