Home Home Accessibility EZ-ACCESS GATEWAY 3G Solid Surface Portable Ramp

Click to zoom

EZ-ACCESS · Home Accessibility

EZ-ACCESS GATEWAY 3G Solid Surface Portable Ramp

$710.99 Free Shipping

Three styles, eight lengths and up to three finishes make up the GATEWAY 3G range. Choose no handrails, Two-Line handrails or Vertical Picket handrails, and a deck that is non-coated extruded aluminum or black Safeguard Hi-Traction gritting, with rails to match or black rails over a non-coated deck.

Ships across the lower 48
Service and repair in Georgia
In business since 1990
Lengths 3, 4, 5, 6, 7, 8, 9 and 10 ft; usable width 36 in
Weight capacity 1,000 lbs on every length
Ramp only, with Two-Line handrails or with Vertical Picket handrails
Deck in extruded slip-resistant aluminum or black Safeguard Hi-Traction direct gritting; handrails in architectural finish or black powder coat
Side rail curbs: 2 in on the 3-8 ft lengths, 4 in on the 9-10 ft lengths

Licensed & Insured Factory-trained, certified technicians Reviews on Google BBB Accredited Business

Ramp Length

Style

Finish

Brand: EZ-ACCESS

Type: Portable Ramps

SKU: GATEWAY3G 03TL

Tags: EZ-ACCESS ezaccess-retail-1027 Ramps

About the EZ-ACCESS GATEWAY 3G Solid Surface Portable Ramp

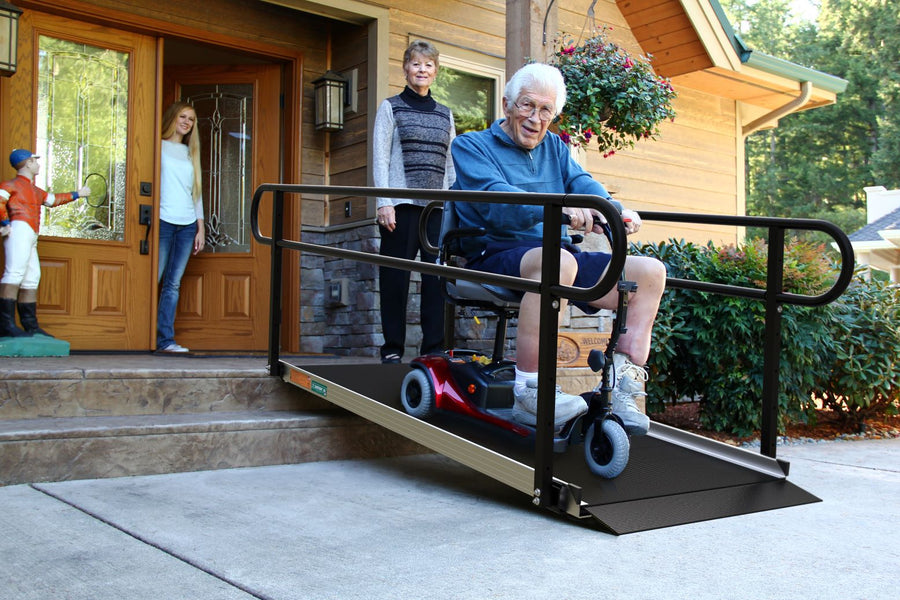

EZ-ACCESS makes it as a solid, seamless aluminum surface rated to 1,000 lbs, for home use with scooters, wheelchairs and walkers. Side rail curbs stand 2 in tall on the 3-8 ft lengths and 4 in on the 9-10 ft lengths.

A 3 ft ramp without handrails weighs 24 lbs; a 10 ft with Vertical Picket handrails, 128 lbs. Follow your mobility device owner guide for acceptable ramp use.

Key specs

Lengths: 3, 4, 5, 6, 7, 8, 9 and 10 ft
Usable size (L x W x H): length x 36 in x (34.5 in); the height in brackets applies to ramps with Two-Line or Vertical Picket handrails
Overall size (L x W x H): length x 41.75 in x (36 in); the height in brackets applies to ramps with handrails
Accommodates rises up to: 3 ft 4 in; 4 ft 6 in; 5 ft 7 in; 6 ft 9 in; 7 ft 10 in; 8 ft 12 in; 9 ft 13 in; 10 ft 15 in
Weight (no handrails / Two-Line / Vertical Picket): 3 ft 24 / 44 / 46 lbs; 4 ft 30 / 52 / 58 lbs; 5 ft 36 / 60 / 68 lbs; 6 ft 42 / 68 / 78 lbs; 7 ft 50 / 74 / 90 lbs; 8 ft 54 / 82 / 98 lbs; 9 ft 68 / 96 / 118 lbs; 10 ft 72 / 106 / 128 lbs
Weight capacity: 1,000 lbs (every length)
Material: aluminum
Surface: extruded aluminum slip-resistant tread, or black Safeguard Hi-Traction direct gritting
Handrail finish: architectural finish or black powder coat
Side rail curbs: 2 in (3-8 ft), 4 in (9-10 ft); Formed top transition with two pre-drilled holes for clevis pins; self-adjusting bottom ground transition plate; For wheelchairs and scooters; for residential use; Made in the USA (EZ-ACCESS)

What's included

1 EZ-ACCESS GATEWAY 3G Solid Surface Portable Ramp
2 clevis pins
4 corner protective caps
With Two-Line or Vertical Picket handrails: 2 handrails of that style
With handrails: 4 handrail end brackets; 4 hex bolts 5/16 in-18 x 1-1/2 in; 12 flat washers 5/16 x 7/8 in OD; 8 hex nuts 5/16 in-18; 2 upper and 2 lower end loops with O-ring and attachment screw
With handrails (continued): 4 self-drilling, self-tapping hex washer head screws 1/4 in; 4 self-drilling pan head Phillips screws No. 10 x 1/2 in; 4 O-rings
1 instruction manual

Warranty

The maker's warranty for this model.

EZ-ACCESS Lifetime Limited Warranty: covers defects in material and workmanship under normal use and service for the lifetime of the product
Applies to EZ-ACCESS parts and components only; excludes powder-coated finish and applied non-skid tape
Original purchaser only, non-transferable; proof of purchase required

Repairs and replacements under warranty are processed in coordination with the manufacturer.

Shipping and delivery

Ships to the contiguous US (lower 48) only.
Most orders are processed within 2-5 business days; some brands differ.
Shipping is free to the customer on online orders over $500.
We cover sales tax on every online order.

Service and repair are in Georgia.

Shipping policy

Why buy from Custom Mobility

Custom Mobility is My Mobility.

Since 1990The company was founded in 1990 and has operated continuously since.
Georgia installation and serviceOur technicians are mobile and come to your home, facility, or fleet yard anywhere in Georgia.
Ships across the lower 48Products ship across the lower 48.
We service what we sellWith our own technicians, from the same company that sold it.
A showroom in AthensWalk-ins are welcome at 315 Whitehead Road.

Common questions

How long does a ramp take?

A modular ramp is typically installed in a day. Permanent construction takes longer and may need a permit.

Will a ramp fit my entrance?

ADA guidance is twelve inches of run per inch of rise. Where there is not room, a platform lift usually is the answer.

What slope does a ramp actually need?

Roughly twelve inches of run for every inch of rise, plus level landings at the top, the bottom, and every turn. A four-foot rise wants close to fifty feet of ramp, which is when a platform lift takes less room.

Modular or poured concrete?

Modular installs fast and comes back out. Poured concrete is permanent and can be finished to match the house. The right answer depends mostly on how long you need it.

Is a permit needed?

Sometimes, particularly for permanent ramps and for commercial work. We handle it, and we will tell you at the quote if one applies.

Do you fit automatic door openers?

Yes, residential and commercial. Where a door is too heavy to manage with a walker, a cane, or full hands, a powered operator often solves more than a ramp does.

Do you service what you sell?

Yes, with our own technicians. The person who comes back is from the same company as the person who installed it.
