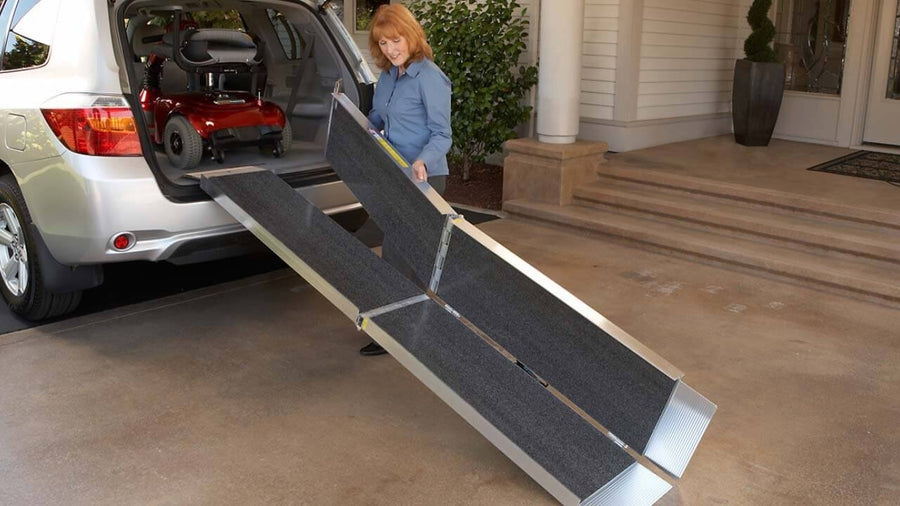

EZ-ACCESS SUITCASE TRIFOLD AS Ramp
A 3-fold design sets this EZ-ACCESS ramp apart from the singlefold models: it folds in half, then in half again lengthwise, so it packs down to half its length and half its width. Hook and loop tabs keep the sections together while you carry it, and it can also be split into two pieces.
- Ships across the lower 48
- Service and repair in Georgia
- In business since 1990
- Five lengths: 5, 6, 7, 8 and 10 ft, each 29.5 in wide in use
- Weight capacity 800 lbs on every length
- 3-fold design: folds to half as long and half as wide
- Separates into two sections; hook and loop tabs hold it closed for carrying
- Aircraft-quality aluminum with a black applied slip-resistant surface (AS)
About the EZ-ACCESS SUITCASE TRIFOLD AS Ramp
A 3-fold design sets this EZ-ACCESS ramp apart from the singlefold models: it folds in half, then in half again lengthwise, so it packs down to half its length and half its width. Hook and loop tabs keep the sections together while you carry it, and it can also be split into two pieces.
Choose 5, 6, 7, 8 or 10 ft. All five are 29.5 in wide in use and rated for 800 lbs. The 7 ft folds to 42.75 in long and 11.5 in high, with sections of 22 lbs each. The deck is aircraft-quality aluminum under the black applied surface EZ-ACCESS calls AS.
EZ-ACCESS lists the 5 ft for curbs, 1-2 steps and some minivans, and the 10 ft for 2-4 steps and some minivans and SUVs. How steep a ramp your device can use is set by its owner guide.
What Our Customers Say
Google reviews of our company and our technicians, not of this one product.
Key specs
- Material
- aircraft-quality aluminum
- Surface
- black applied slip-resistant surface (AS)
- Usable size (L x W)
- 5 ft x 29.5 in; 6 ft x 29.5 in; 7 ft x 29.5 in; 8 ft x 29.5 in; 10 ft x 29.5 in
- Folded size (L x W x H)
- 5 ft 30.75 in x 15 in x 11.5 in; 6 ft 36.75 in x 15 in x 11.5 in; 7 ft 42.75 in x 15 in x 11.5 in; 8 ft 48.75 in x 15 in x 11.5 in; 10 ft 60.75 in x 15 in x 11.5 in
- Weight (each of 2 sections)
- 5 ft 16 lbs; 6 ft 19 lbs; 7 ft 22 lbs; 8 ft 25 lbs; 10 ft 30 lbs
- Weight capacity
- 800 lbs (every length)
- EZ-ACCESS usage guidelines
- 5 ft curbs, 1-2 steps, some minivans; 6 ft 1-3 steps, some minivans, some SUVs; 7 ft 1-3 steps, some minivans, SUVs; 8 ft 2-3 steps, some minivans, SUVs; 10 ft 2-4 steps, some minivans, SUVs
- Built-in carrying handle
- yes
- For wheelchairs and scooters, residential use
- Weights and dimensions are approximate and subject to change (EZ-ACCESS)
What's included
- 1 EZ-ACCESS SUITCASE TRIFOLD AS Ramp
- 2 clevis pins
- 2 hinge pins
- 1 instructions
Warranty
The maker's warranty for this model.
- EZ-ACCESS Lifetime Limited Warranty: covers defects in material and workmanship under normal use and service for the lifetime of the product
- Applies to EZ-ACCESS parts and components only; excludes powder-coated finish and applied non-skid tape
- Original purchaser only, non-transferable; proof of purchase required
Repairs and replacements under warranty are processed in coordination with the manufacturer.
Shipping and delivery
- Ships to the contiguous US (lower 48) only.
- Most orders are processed within 2-5 business days; some brands differ.
- Shipping is free to the customer on online orders over $500.
- We cover sales tax on every online order.
Service and repair are in Georgia.
Why buy from Custom Mobility
Custom Mobility is My Mobility.
- Since 1990The company was founded in 1990 and has operated continuously since.
- Georgia installation and serviceOur technicians are mobile and come to your home, facility, or fleet yard anywhere in Georgia.
- Ships across the lower 48Products ship across the lower 48.
- We service what we sellWith our own technicians, from the same company that sold it.
- A showroom in AthensWalk-ins are welcome at 315 Whitehead Road.
Common questions
How long does a ramp take?
A modular ramp is typically installed in a day. Permanent construction takes longer and may need a permit.
Will a ramp fit my entrance?
ADA guidance is twelve inches of run per inch of rise. Where there is not room, a platform lift usually is the answer.
What slope does a ramp actually need?
Roughly twelve inches of run for every inch of rise, plus level landings at the top, the bottom, and every turn. A four-foot rise wants close to fifty feet of ramp, which is when a platform lift takes less room.
Modular or poured concrete?
Modular installs fast and comes back out. Poured concrete is permanent and can be finished to match the house. The right answer depends mostly on how long you need it.
Is a permit needed?
Sometimes, particularly for permanent ramps and for commercial work. We handle it, and we will tell you at the quote if one applies.
Do you fit automatic door openers?
Yes, residential and commercial. Where a door is too heavy to manage with a walker, a cane, or full hands, a powered operator often solves more than a ramp does.
Do you service what you sell?
Yes, with our own technicians. The person who comes back is from the same company as the person who installed it.
