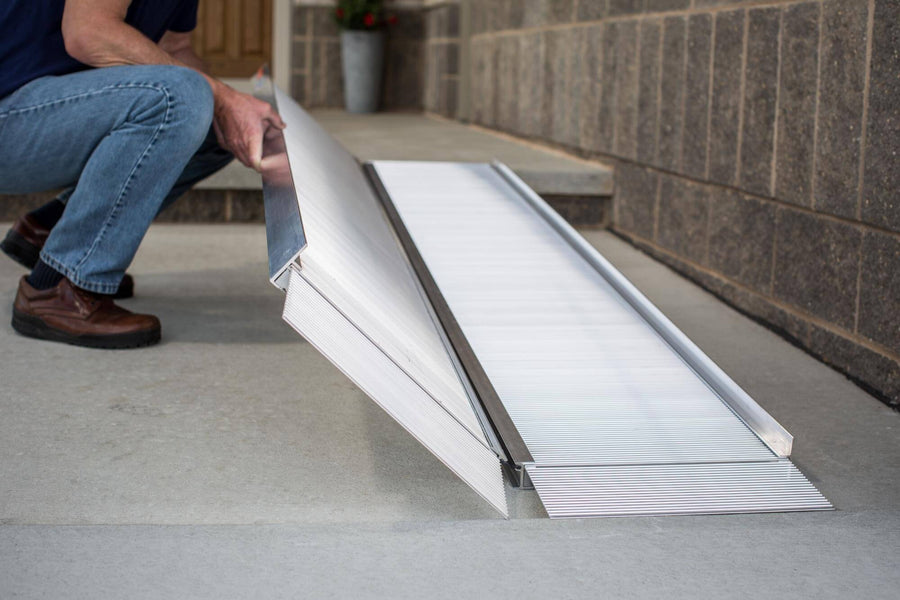

EZ-ACCESS SUITCASE Singlefold Ramp
Getting a wheelchair or scooter over a curb, a step or two, or into some minivans is the job EZ-ACCESS built this aluminum ramp for. It folds in half one time and carries by flexible, non-breakable handles.
- Ships across the lower 48
- Service and repair in Georgia
- In business since 1990
- Seven lengths: 2, 3, 4, 5, 6, 7 and 8 ft, each 30 in wide in use
- Weight capacity 800 lbs on every length
- Folds in half once and keeps its full length when folded
- Aluminum with an extruded slip-resistant tread and built-in carrying handles
- Full-length hinge and two self-adjusting bottom transition plates
About the EZ-ACCESS SUITCASE Singlefold Ramp
Getting a wheelchair or scooter over a curb, a step or two, or into some minivans is the job EZ-ACCESS built this aluminum ramp for. It folds in half one time and carries by flexible, non-breakable handles.
Pick from 2, 3, 4, 5, 6, 7 or 8 ft. Whichever you choose, the usable width is 30 in, the weight capacity is 800 lbs and the deck carries the extruded slip-resistant tread. Per EZ-ACCESS, the 4 ft weighs 23 lbs and the 6 ft weighs 34 lbs. To keep it from moving, the provided clevis pins or screws go through pre-drilled holes at the top.
Your mobility device's owner guide tells you how steep a ramp it can use, so look there first. EZ-ACCESS covers the ramp with a lifetime limited warranty.
What Our Customers Say
Google reviews of our company and our technicians, not of this one product.
Key specs
- Material
- aluminum
- Surface
- extruded slip-resistant tread
- Usable size (L x W)
- 2 ft x 30 in; 3 ft x 30 in; 4 ft x 30 in; 5 ft x 30 in; 6 ft x 30 in; 7 ft x 30 in; 8 ft x 30 in
- Folded size (L x W x H)
- 2 ft 24 in x 15 in x 4 in; 3 ft 36 in x 15 in x 4 in; 4 ft 48 in x 15 in x 4 in; 5 ft 60 in x 15 in x 4 in; 6 ft 72 in x 15 in x 4 in; 7 ft 84 in x 15 in x 4 in; 8 ft 96 in x 15 in x 4 in
- Weight
- 2 ft 11 lbs; 3 ft 17 lbs; 4 ft 23 lbs; 5 ft 29 lbs; 6 ft 34 lbs; 7 ft 41 lbs; 8 ft 47 lbs
- Weight capacity
- 800 lbs (every length)
- EZ-ACCESS usage guidelines
- 2 ft curbs, 1 step; 3 ft curbs, 1 step; 4 ft curbs, 1-2 steps; 5 ft curbs, 1-2 steps, some minivans; 6 ft 1-3 steps, some minivans and SUVs; 7 ft 1-3 steps, some minivans and SUVs; 8 ft 2-3 steps, some minivans and SUVs
- Built-in carrying handle
- yes
- For wheelchairs and scooters, residential use
- Weights and dimensions are approximate and subject to change (EZ-ACCESS)
What's included
- 1 EZ-ACCESS SUITCASE Singlefold Ramp
- 2 clevis pins
- 1 instructions
Warranty
The maker's warranty for this model.
- EZ-ACCESS Lifetime Limited Warranty: covers defects in material and workmanship under normal use and service for the lifetime of the product
- Applies to EZ-ACCESS parts and components only; excludes powder-coated finish and applied non-skid tape
- Original purchaser only, non-transferable; proof of purchase required
Repairs and replacements under warranty are processed in coordination with the manufacturer.
Shipping and delivery
- Ships to the contiguous US (lower 48) only.
- Most orders are processed within 2-5 business days; some brands differ.
- Shipping is free to the customer on online orders over $500.
- We cover sales tax on every online order.
Service and repair are in Georgia.
Why buy from Custom Mobility
Custom Mobility is My Mobility.
- Since 1990The company was founded in 1990 and has operated continuously since.
- Georgia installation and serviceOur technicians are mobile and come to your home, facility, or fleet yard anywhere in Georgia.
- Ships across the lower 48Products ship across the lower 48.
- We service what we sellWith our own technicians, from the same company that sold it.
- A showroom in AthensWalk-ins are welcome at 315 Whitehead Road.
Common questions
How long does a ramp take?
A modular ramp is typically installed in a day. Permanent construction takes longer and may need a permit.
Will a ramp fit my entrance?
ADA guidance is twelve inches of run per inch of rise. Where there is not room, a platform lift usually is the answer.
What slope does a ramp actually need?
Roughly twelve inches of run for every inch of rise, plus level landings at the top, the bottom, and every turn. A four-foot rise wants close to fifty feet of ramp, which is when a platform lift takes less room.
Modular or poured concrete?
Modular installs fast and comes back out. Poured concrete is permanent and can be finished to match the house. The right answer depends mostly on how long you need it.
Is a permit needed?
Sometimes, particularly for permanent ramps and for commercial work. We handle it, and we will tell you at the quote if one applies.
Do you fit automatic door openers?
Yes, residential and commercial. Where a door is too heavy to manage with a walker, a cane, or full hands, a powered operator often solves more than a ramp does.
Do you service what you sell?
Yes, with our own technicians. The person who comes back is from the same company as the person who installed it.
