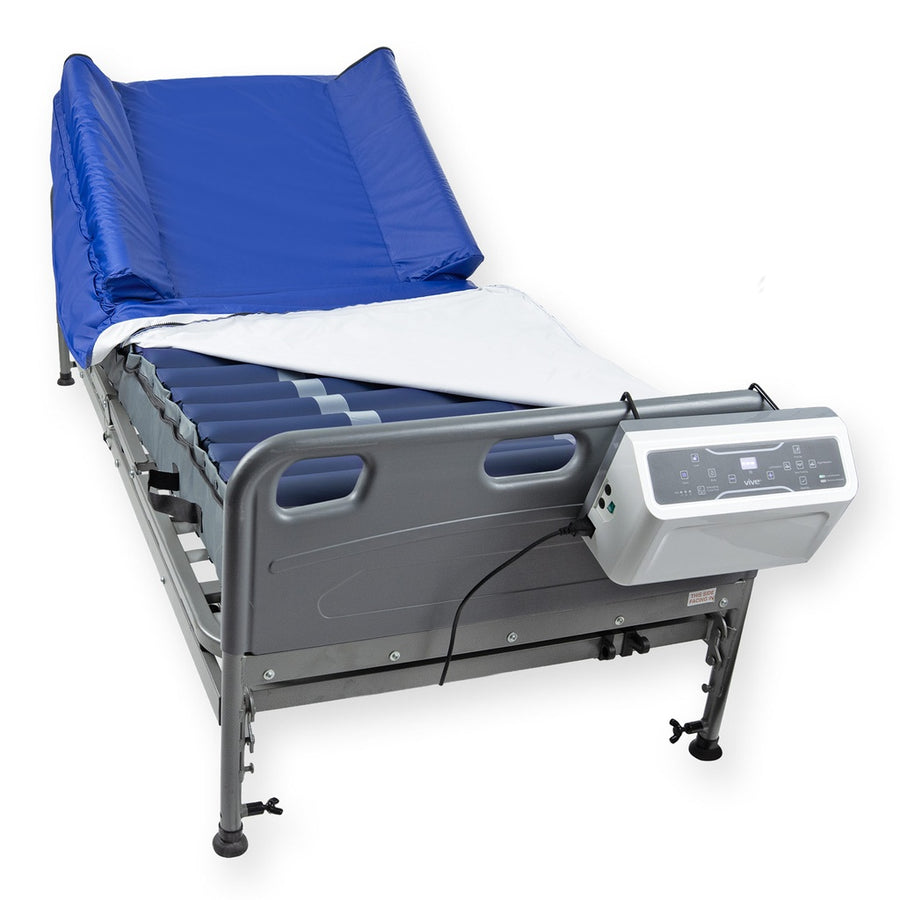

Alternating Pressure Mattress With Lateral Rotation, 8 Inch
Turning and repositioning someone in bed is demanding work. This mattress system does part of it with power: four air bladders under the 8 in mattress rotate it roughly 45 degrees to either side, taking about 2 minutes 30 seconds, and lift the head or foot end.
- Ships across the lower 48
- Service and repair in Georgia
- In business since 1990
- 8 in mattress with 19 air cells; 3 head cells stay inflated
- Four bladders underneath rotate the mattress about 45 degrees left or right and raise the head and foot
- Digital pump with remote: weight setting 80-350 lbs, 12, 18 or 24 minute cycles, static mode
- Waterproof zip-off cover, CPR valves, audible and visual pressure alarms
- Pump runs at about 45 dB
About the Alternating Pressure Mattress With Lateral Rotation, 8 Inch
Turning and repositioning someone in bed is demanding work. This mattress system does part of it with power: four air bladders under the 8 in mattress rotate it roughly 45 degrees to either side, taking about 2 minutes 30 seconds, and lift the head or foot end.
On top, 19 air cells provide alternating pressure across a range of 30 to 60 mmHg, with three cycle times. Alternating pauses during rotation or lifting. The pump runs at about 45 dB, and its controls lock automatically after 3 minutes.
The mattress measures 78.74 in by 33.46 in and weighs 35.3 lbs. It has four side handles, a removable waterproof cover and CPR valves, and it supports 350 lbs. A spare air chamber and repair kit are included.
What Our Customers Say
Google reviews of our company and our technicians, not of this one product.
Key specs
- Mattress
- 78.74 in L x 33.46 in W x 7.87 in H (8 in nominal)
- Air cells
- 19 (3 at the head stay inflated)
- Positioning bladders
- 4
- Side support
- 2 foam side panels near the head
- Side handles
- 4
- Pressure range
- 30-60 mmHg
- Patient weight adjustment
- 80-350 lbs in 1 lb increments
- Alternating cycle times
- 12, 18 or 24 minutes
- Static mode
- all cells at 40 mmHg
- Lateral rotation
- approximately 45 degrees left or right, about 2 minutes 30 seconds each way
- Head elevation time
- approximately 6 minutes 30 seconds
- Foot elevation time
- approximately 2 minutes
- Inflation time
- approximately 15 minutes (static), 45 minutes (normal)
- Air output
- 6-8 L/min
- Operating noise
- approximately 45 dB at 1 meter
- Power
- 110V / 60Hz, 18W; fuse 1A / 250V
- Pump
- 14.56 in x 8.07 in x 5.51 in, 3.53 lbs
- Remote
- 4.33 in x 1.97 in x 0.79 in, 0.16 lbs
- Power cord length
- 14.8 ft
- Mattress weight
- 35.3 lbs
- Weight capacity
- 350 lbs
- Materials
- PVC, TPU, PU; latex-free
- Color
- Blue
What's included
- 1x 8 in alternating pressure mattress with attached air hose
- 1x Digital compressor pump with remote control
- 1x Patch/repair kit
- 1x Spare air chamber
