Click to zoom

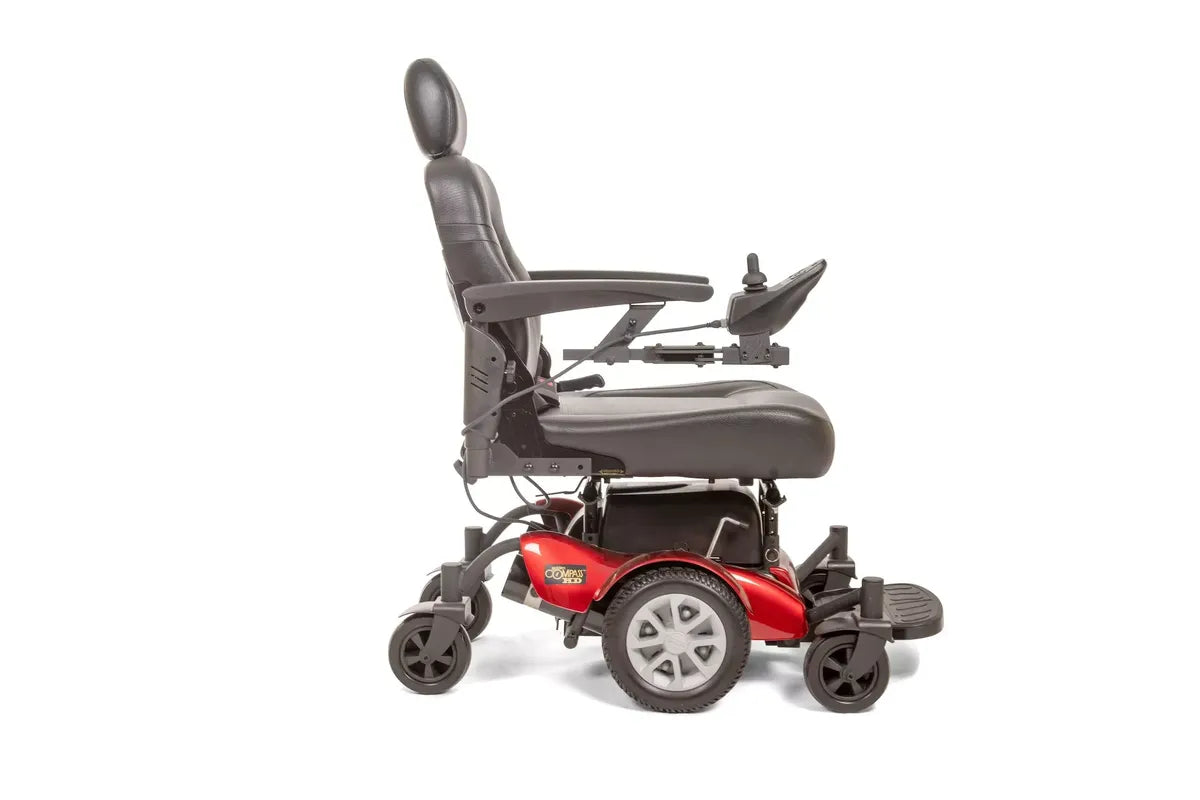

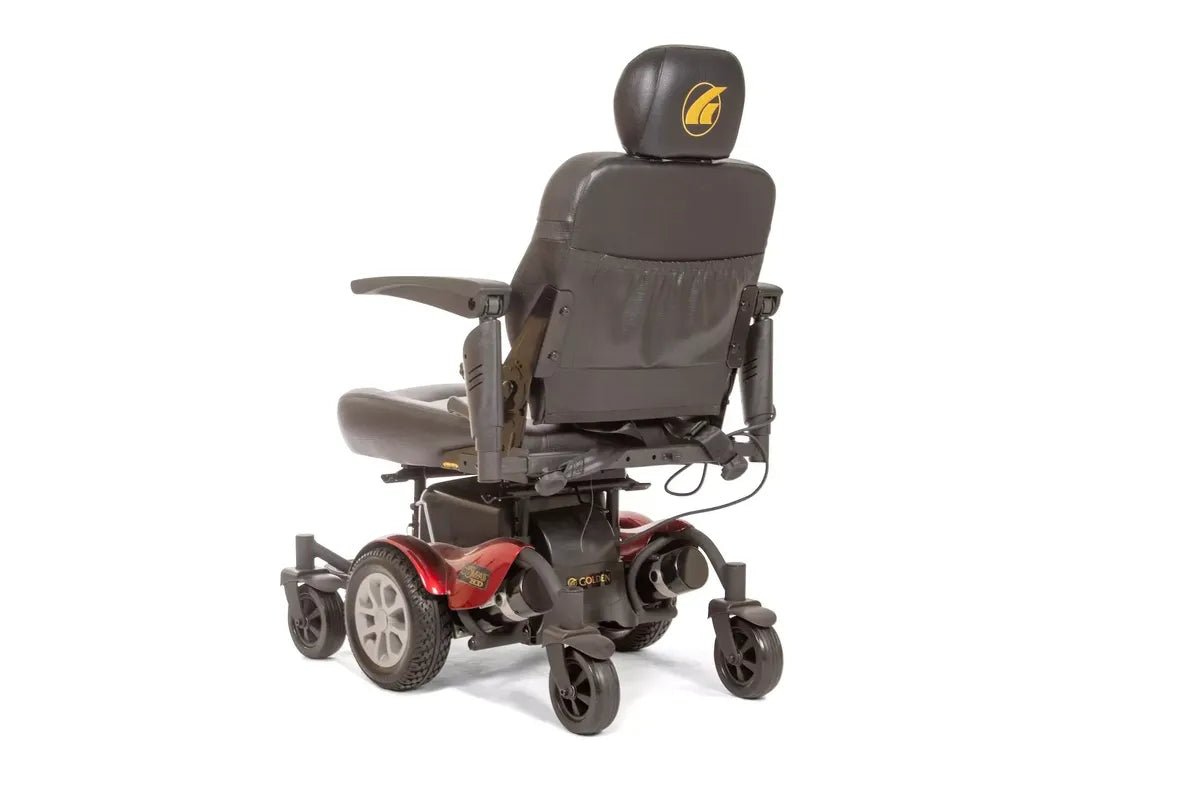

Compass HD (No Batteries inc)
The Golden Compass HD is the heavy-duty version of the original Compass, with a 450 lb weight capacity. It keeps the patented springless articulating chassis and true center-wheel drive design for maneuverability in tight spaces, and Golden lists a 20-inch turning radius.
- Ships across the lower 48
- Service and repair in Georgia
- In business since 1990
- 450 lb weight capacity
- Center-wheel drive
- 20" turning radius
- Seats up to 24" wide
About the Compass HD (No Batteries inc)
The Golden Compass HD is the heavy-duty version of the original Compass, with a 450 lb weight capacity. It keeps the patented springless articulating chassis and true center-wheel drive design for maneuverability in tight spaces, and Golden lists a 20-inch turning radius.
Fit matters on a heavy-duty chair. Seat sizes go up to 24 inches wide: 18 to 24 inches wide by 18 to 20 inches deep, on a Captain's seat. Seat height has five positions in 0.5-inch steps, and the footrest adjusts for height and angle.
Golden's accessory list for the Compass HD includes swing-away and elevating legrests, a stump support, a footplate extender, cane/crutch, walker and oxygen tank holder kits, and the Pack N Go.
Top speed is 4 mph and range is 12 miles. Ground clearance is 3.5 inches, and the tires are flat-free and non-marking. The battery type Golden specifies is NF22 and each battery weighs 37 lbs. Golden lists the base at 101 lbs and the seat with arms at 51 lbs.
Custom Mobility ships the Compass HD across the lower 48. Call us with your measurements and we will help you choose a seat size.
What Our Customers Say
Google reviews of our company and our technicians, not of this one product.
Key specs
- Model
- GP620
- User weight capacity
- 450 lbs
- Drive wheels
- Center
- Maximum speed
- 4 mph
- Operating range
- 12 miles
- Battery type
- NF22
- Batteries weight
- 37 lbs each
- Turning radius
- 20"
- Length
- 40"
- Width
- 25"
- Weight of unit (assembled)
- 226 lbs
- Base weight
- 101 lbs
- Seat with arms weight
- 51 lbs
- Seat width x depth
- 18"-24" x 18"-20"
- Ground to top of seat
- 21.25"-24.25"
- Ground clearance
- 3.5"
- Tires
- 10" center, 6" casters, flat-free
- Controller
- 75 Amp
Specifications as published by Golden Technologies: maker's spec sheet.
Warranty
The maker's warranty for this model.
- Frame: 5 years limited
- Drive train: 13 months
- Electronics: 13 months
- Batteries: 1 year
- Original purchaser only; not transferable; proof of purchase required
- Normal residential use only
- Claims are filed with the retailer you bought from
Repairs and replacements under warranty are processed in coordination with the manufacturer.
