Open Sesame Commercial Automatic Door Opener
Open Sesame Commercial Automatic Door Opener is backordered and will ship as soon as it is back in stock.
About This Product
About This Product

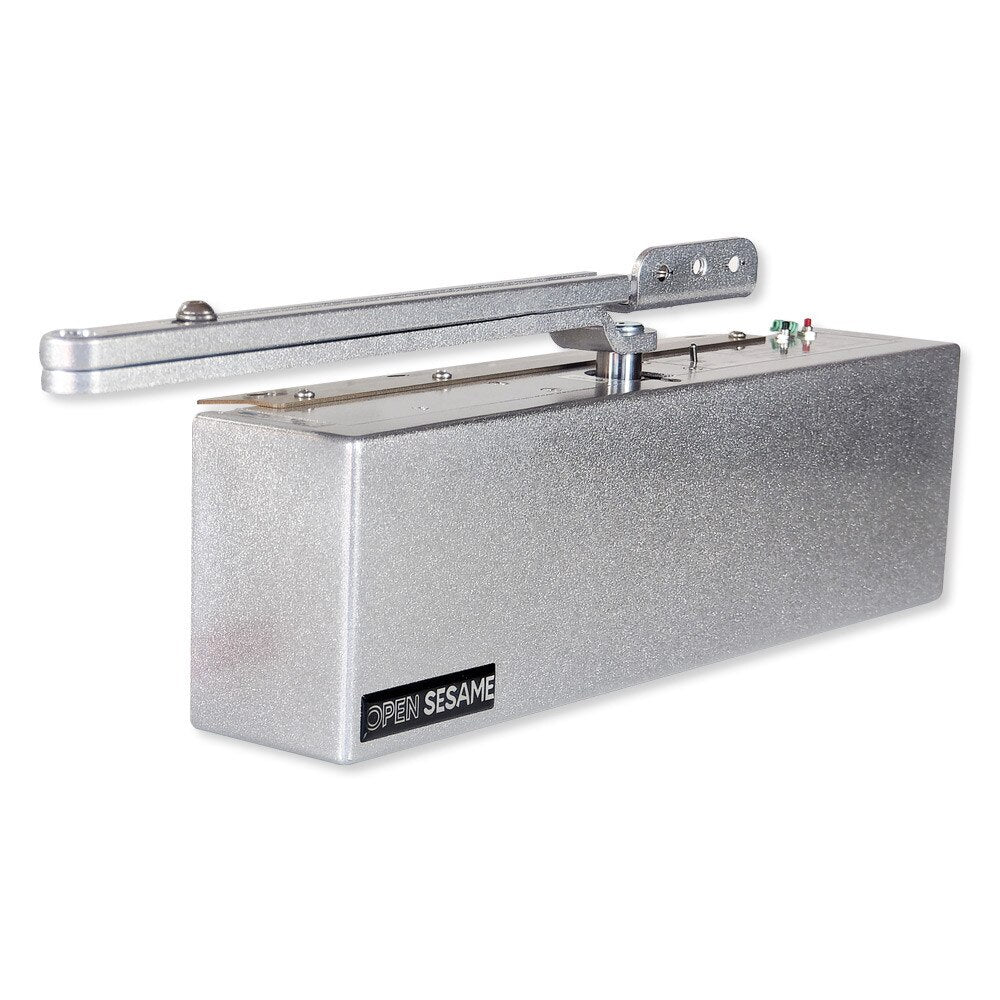

The Open Sesame Model 233-10 is a commercial automatic door operator designed to provide accessible entry for high-traffic environments. The electromechanical system powers both door opening and closing while functioning like a traditional door closer when operated manually.
This system can be installed on most swinging doors and offers flexible mounting configurations for inward- and outward-opening doors. The integrated clutch mechanism allows adjustment of closing speed and resistance to accommodate wind conditions, pressure differences, or door weight.
Because it operates on a low-voltage system with a plug-in transformer, installation typically requires less time and complexity than conventional commercial door automation systems.
Care information
Care information
The Model 233 commercial door operator is designed for long-term reliability in everyday environments.
To maintain dependable performance:
- Keep the operator housing clean and free of debris
- Inspect door hinges and alignment periodically
- Ensure push plates or remote devices operate properly
- Test door cycle and safety stop features regularly
- Schedule routine professional inspections for commercial accessibility equipment
Proper maintenance ensures smooth operation and long service life.
Installation Process
Installation Process
1. Door Evaluation
We assess the door size, weight, swing direction, and accessibility requirements.
2. Operator Mounting
The Model 233 operator is installed near the top corner of the door or lintel depending on configuration.
3. Electrical Setup
Low-voltage wiring connects the transformer, operator, and activation devices.
4. System Calibration
Opening angle, hold-open time, and closing force are adjusted for proper operation.
5. Final Testing
All safety features and accessibility controls are tested before hand-off.
Most installations can be completed quickly because the system uses a plug-in low-voltage transformer rather than hard-wired power.
Open Sesame Commercial Automatic Door Opener
Open Sesame Commercial Automatic Door Opener is backordered and will ship as soon as it is back in stock.
Commercial Accessibility Made Simple.
- Fully automatic open-pause-close door operation
- Low-voltage system with plug-in transformer
- Wireless push-pad activation for accessible entry
- Internal battery backup for continued operation during power outages
When activated by push pads, remotes, or other devices, the door automatically opens, pauses for passage, and closes securely behind the user.
Description
Description
ADA-Friendly Automatic Entry for Businesses and Public Buildings
Heavy doors shouldn’t stop someone from entering your building.
The Open Sesame Model 233-10 Commercial Automatic Door Opener provides reliable hands-free door operation for businesses, schools, offices, churches, and public facilities. With a powered open–pause–close cycle and wireless activation options, this system allows doors to open automatically for accessible entry while maintaining controlled closing and security.
Designed for light commercial environments, the Model 233 operates quietly and efficiently while requiring only low-voltage wiring—making installation faster and less invasive than most commercial door operators.
Accessibility starts at the entrance.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
✔ Door Automation
- Automatic open–pause–close cycle
- Adjustable hold-open time between 5 and 30 seconds
- Door closes automatically if opened manually
✔ Accessibility Controls
- Wireless push-pad activation
- Compatible with push plates, sensors, and wired switches
- Radio receiver supports secure coded transmitters
✔ Commercial Durability
- Steel housing with powder-coated finish
- Adjustable clutch for wind resistance and closing speed
- Designed for storefronts, offices, schools, and lobbies
✔ Power & Electronics
- 24-volt low-voltage operation
- Plug-in transformer power supply
- Internal rechargeable battery backup
✔ Flexible Installation
- Door mount for inward-opening doors
- Lintel mount for outward-opening doors
- Parallel arm configuration for recessed or storm doors
Operator Type: Electromechanical door operator
Door Operation: Powered open and powered close
Power Supply: 24 VAC low-voltage system
Transformer: 115 VAC input, 24 VAC 20 VA output
Motor: 12V DC motor system
Battery Backup: 12V sealed lead-acid battery
Opening Angle: Up to 120° depending on installation
Hold-Open Delay: Adjustable 5–30 seconds
Dimensions: approx. 2⅝" × 4" × 14⅛"
Weight: approx. 10 lbs
Mounting Options: Door mount, lintel mount, or parallel arm configuration
The Model 233 commercial operator includes one year of full warranty coverage, followed by extended limited parts coverage for up to five years depending on service conditions.
Why Choose Us?
-
Enhanced Mobility
-
Superior Safety
-
Affordable Solutions
-
Supreme Comfort
Frequently Asked Questions
Can the door still be opened manually?
Can the door still be opened manually?
Yes. The door remains free-swinging and can be operated manually when the operator is not active.
Will the system open a locked door?
Will the system open a locked door?
Yes. The included electric strike automatically releases the latch so the operator can open the door.
Can this be installed on existing doors?
Can this be installed on existing doors?
Yes. The system is designed to retrofit most standard residential swinging doors.
What happens during a power outage?
What happens during a power outage?
The system includes battery backup that allows the door to continue operating even when external power is lost.
How is the door activated?
How is the door activated?
The door can be activated using the included remote transmitter or optional activation devices such as push plates, sensors, or keyless entry systems.
