Jazzy® 600 ES

The Jazzy® 600 ES features patented Mid-wheel 6® technology and Active-Trac® ATX Suspension for an extraordinary level of performance, maneuverability and the tightest turning radius in the Jazzy line.

Mid-wheel 6 technology incorporates ATX Suspension for extra stability with independent front casters that raise and lower as needed to compensate instantly for changes in terrain and ease of transitions.

The Jazzy 600 ES offers true all-around performance indoors and out, transitions curbs smoothly and is rated for climbing and aggressive performance, making it an excellent power chair choice.

• OMNI-Casters (nylon, spherical-shaped casters) on front and rear to prevent wheel hang-ups
• Side-mounted, easily accessible freewheel levers

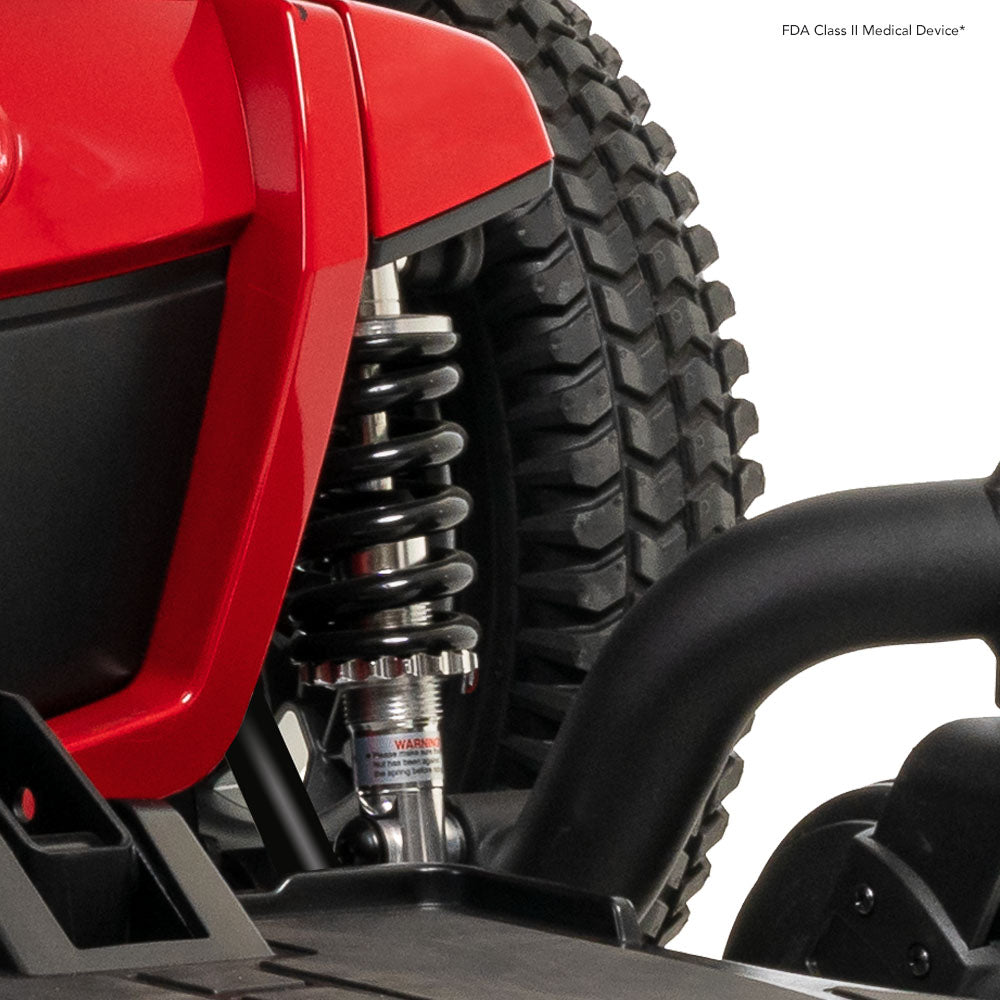

• Active-Trac® ATX Suspension for enhanced performance over more varied terrain
• Easy front access to batteries
• Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.

• Model	Jazzy® 600 ES
  Weight Capacity	300 lbs.
  Turning Radius1	20.5"
  Width1	24.5"
  Length1,2	35.5"/40.25" (with footplate)
  Maximum Speed3	Up to 4 mph
  Ground Clearance1	2.75"
  Front Wheels	6" solid OMNI-Casters
  Drive Wheels	14" foam-filled
  Rear Wheels	6" solid OMNI-Casters
  Drivetrain	Two-motor, mid-wheel drive
  Braking System	Regenerative and electro-mechanical
  Suspension Type	Active-Trac® (ATX)
  High-Back Seat (max. size)	20"W x 20"D
  High-Back Seat-to-Floor Range	20.5”-22.5”
  Synergy® Seating	20"W x 20"D
  Synergy® Seat-to-Floor Range	17.25" - 19.25"
  Standard Electronics	50A, Dynamic Shark
  Battery Size (2 required)	12 volt, NF-22
  Standard Battery Charger	5A, off-board
  Per-Charge Range3,6	up to 24.8 miles 300lbs.), up to 29.5miles (200lbs.)/td>
  Battery Weight5	37 lbs. each
  Weight of Heaviest Piece4	124 lbs.
  Standard Seat Weight	52 lbs. (high-back)
  Standard Seat Size	18" x 18"-20" / 20" x 18"-20"
  Medicare Code Coverage	Group 2: Standard (K0822/K0823)
  Warranty	5-year limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors; 13-month limited on batteries.
  Notes: 1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 4 Does not include seat or battery weights. 5 Battery weight may vary based on manufacturer. 6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.

  The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
