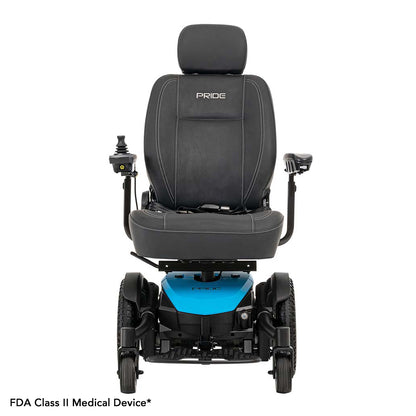

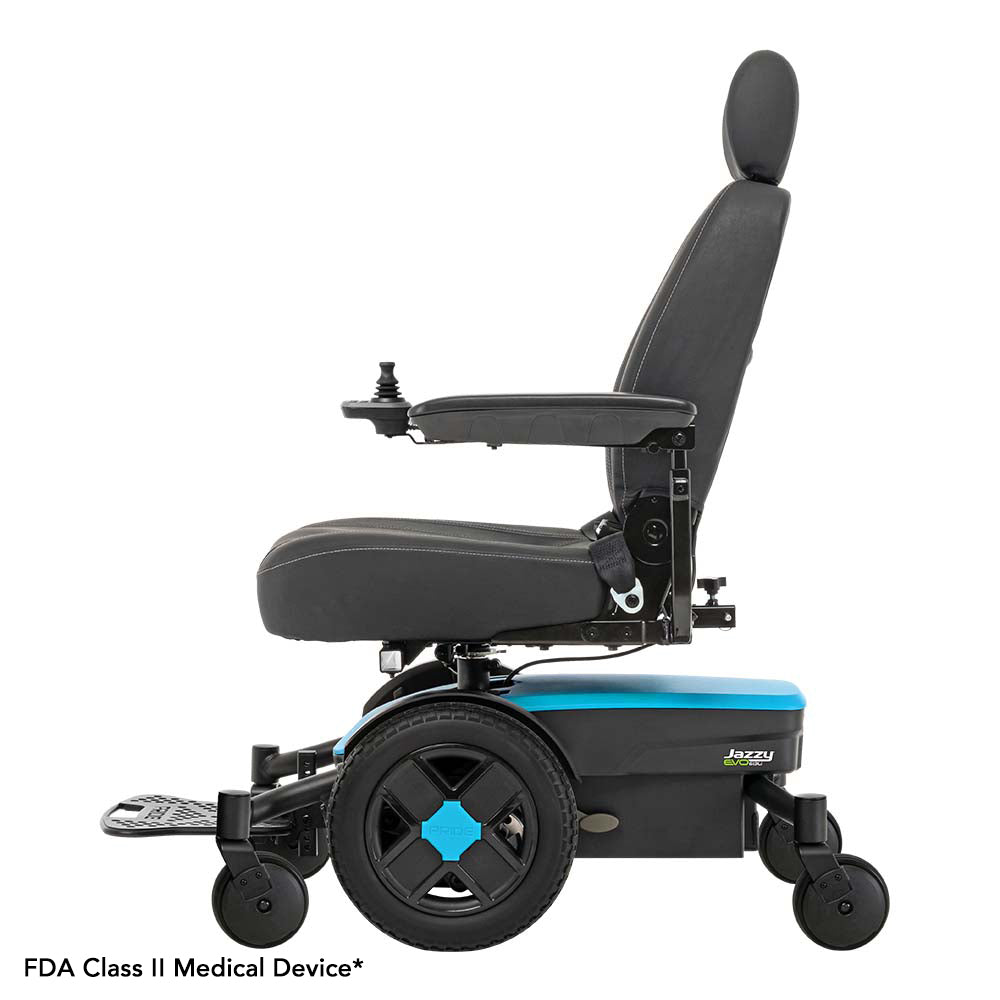

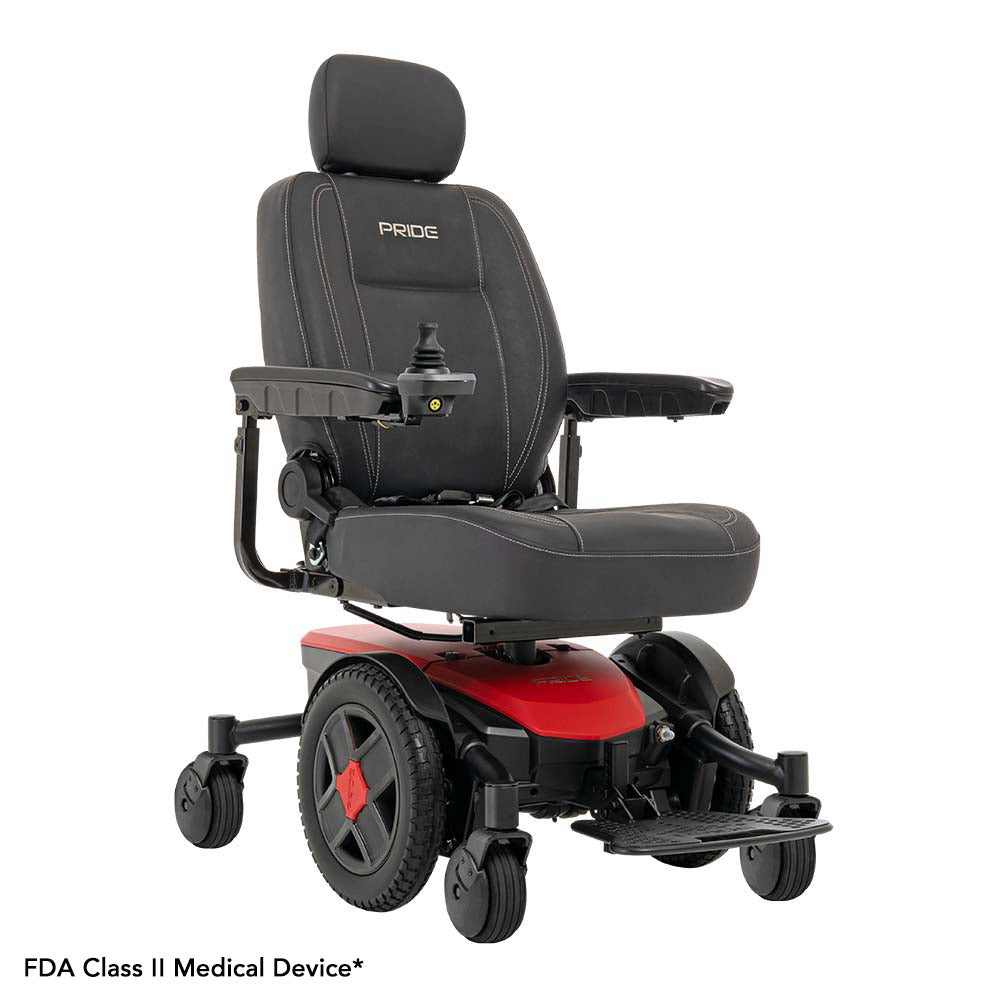

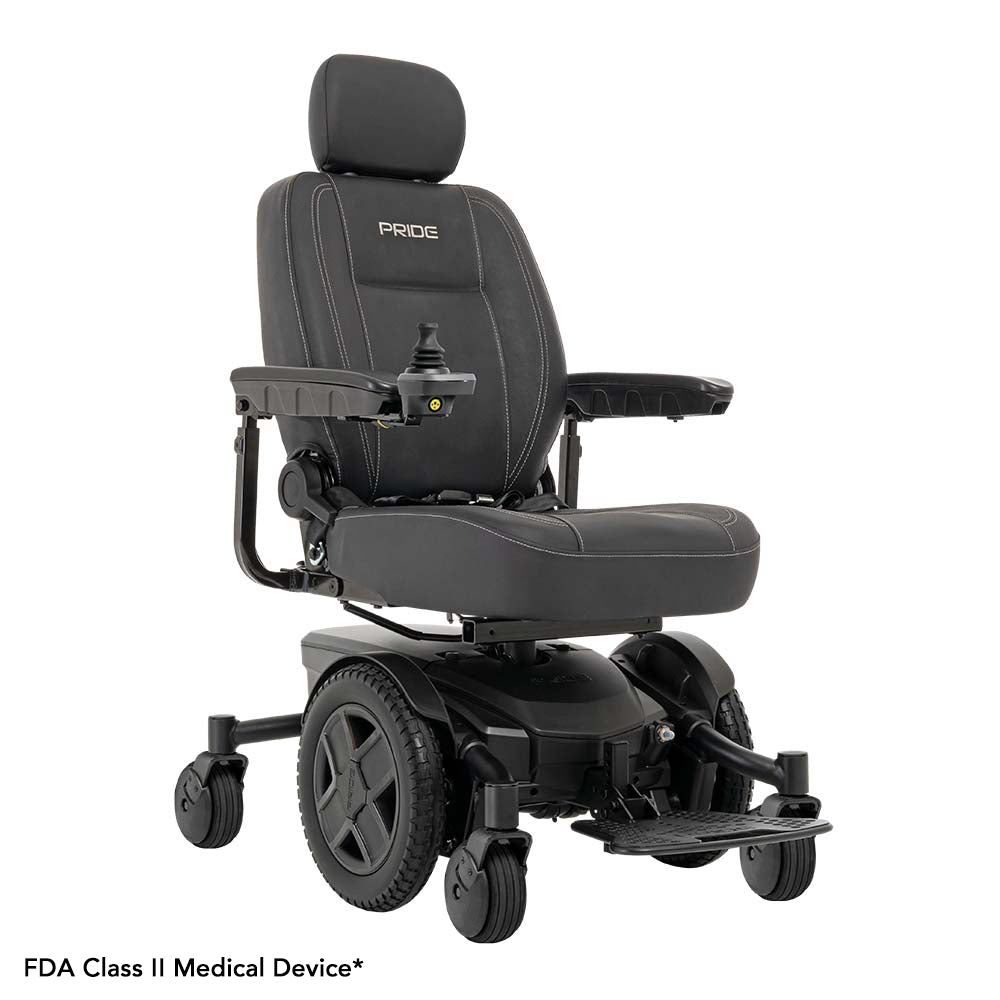

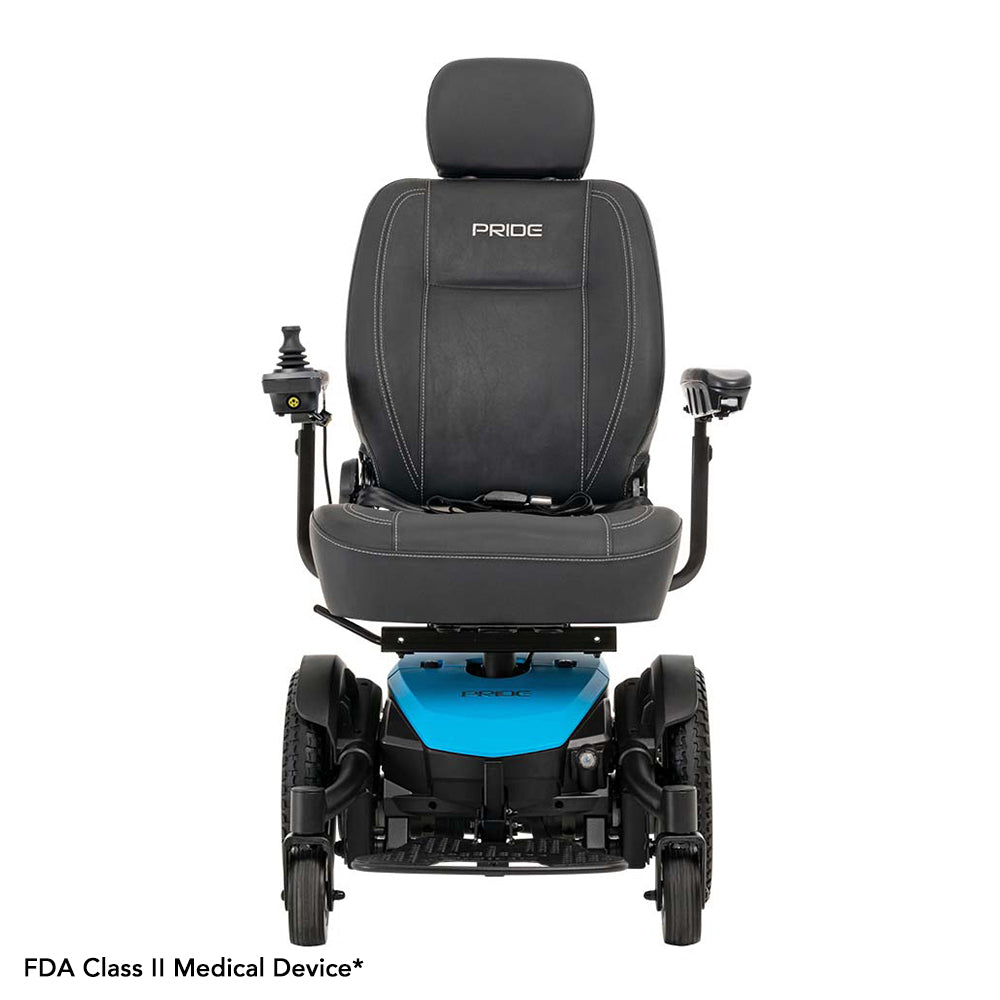

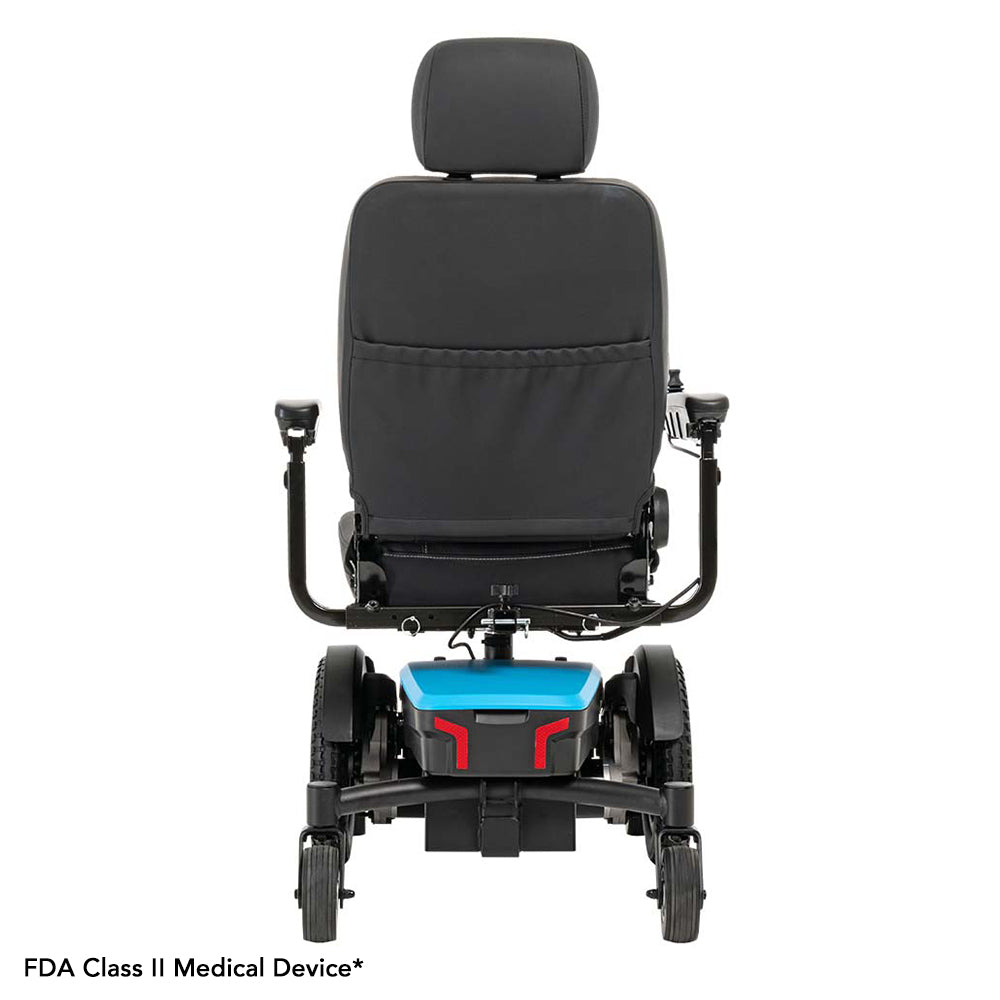

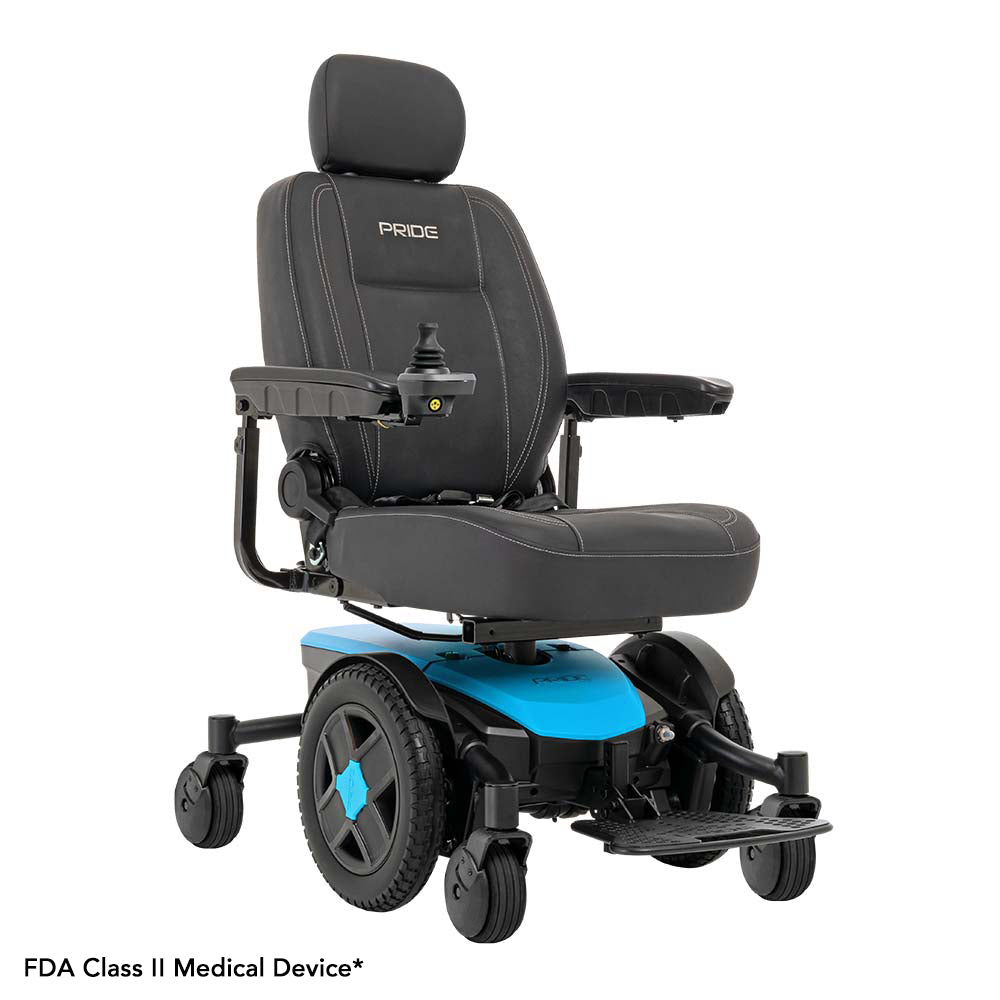

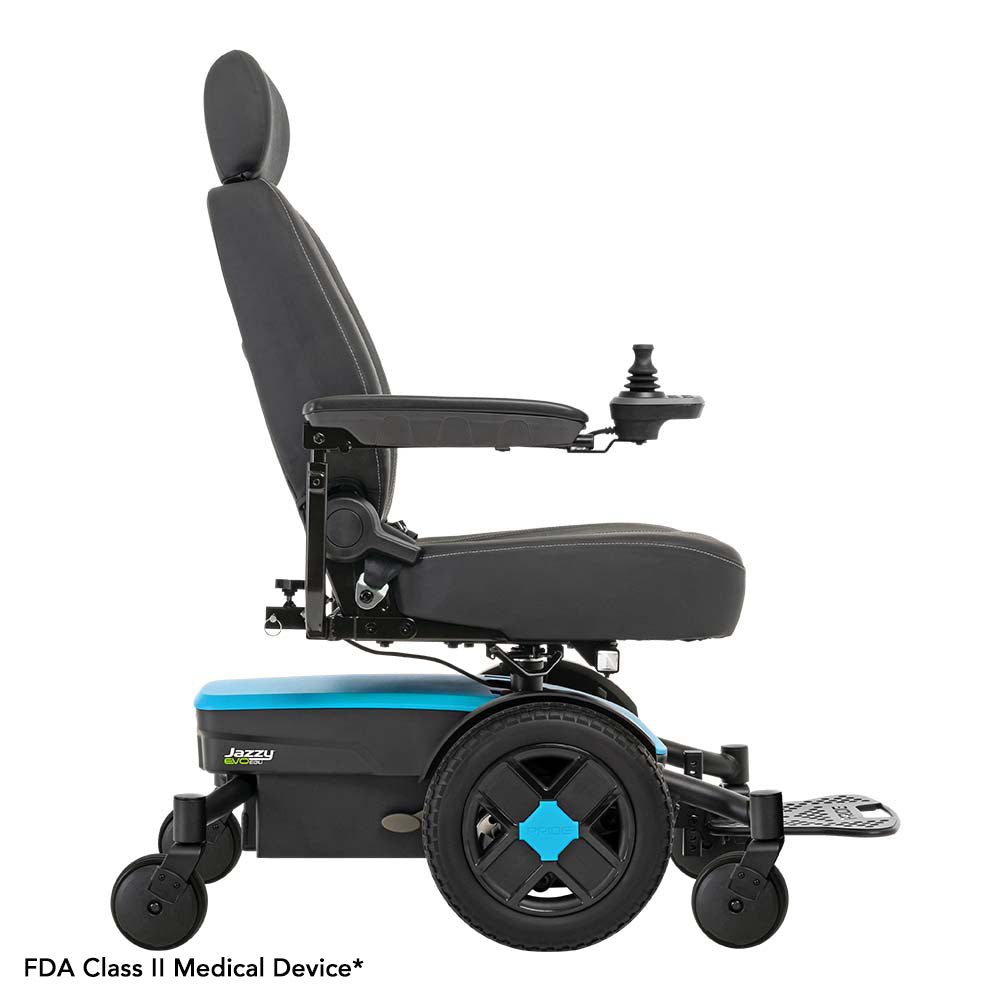

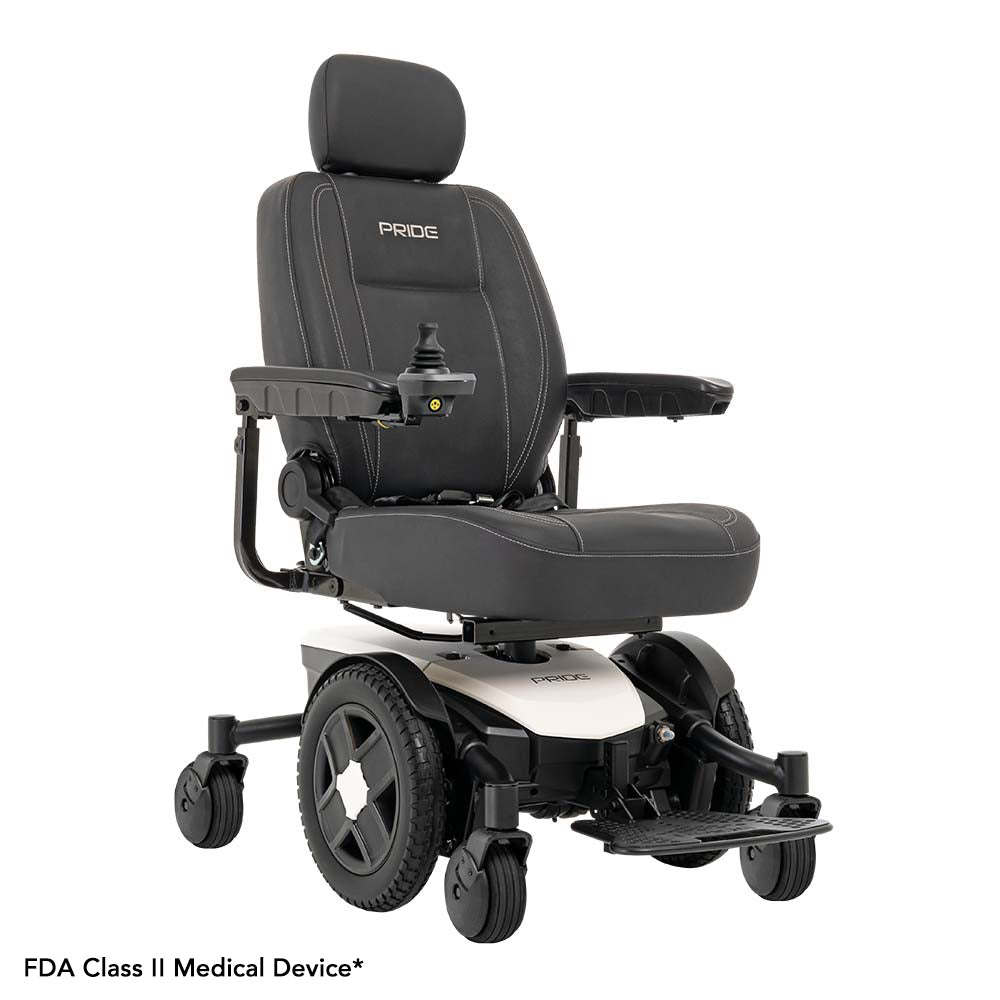

JAZZY EVO 613, LITHIUM

Description

The all new Medicare-reimbursable Jazzy® EVO 613 is here! The Jazzy® EVO 613 provides the freedom to navigate small spaces and tight corners indoors with a narrow base width of only 22”.

300 lb. weight capacity
Narrow base width of only 22"
Maximum speed up to 5.1 mph
13" solid drive tires
Mid-wheel 6® Technology offers tight turning radius around doorways and corners
Pride's patented Active-Trac (ATX) Suspension ensures a smooth ride experience over uneven surfaces

Model	Jazzy Evo 613
Weight Capacity	300 lbs.
Maximum Speed*	Up to 5.1 mph
Ground Clearance	3” at motor bracket
Turning Radius**	22”
Overall Length**	41” with footrest (35” without)
Overall Width	22”
Seat-to-Floor Range	19.75” - 21.25”
Front Casters	5”
Drive Wheels	13” solid
Rear Casters	5”
Suspension Type	Active-Trac® (ATX)
Range Per Charge*	EVO 613: Up to 14 miles at 300 lbs., Up to 17.1 miles at 200 lbs.
Total Weight with Batteries**	EVO 613: 189 lbs. EVO 613 Li: 160.5 lbs.
Heaviest Piece When Disassembled**	94 lbs. (base)
Standard Electronics	40A, PG GC3
Battery Requirements	EVO 613: (2) 12 volt, U-1 EVO 613 Li: (1) Lithium iron phosphate
Battery Charger	3.5 amp, off-board
Warranty	Frame: 5-year limited Drivetrain: 13-month limited Electronics: 13-month limited SLA Battery: 13-month limited Lithium Battery: 3-year limited
