Pride

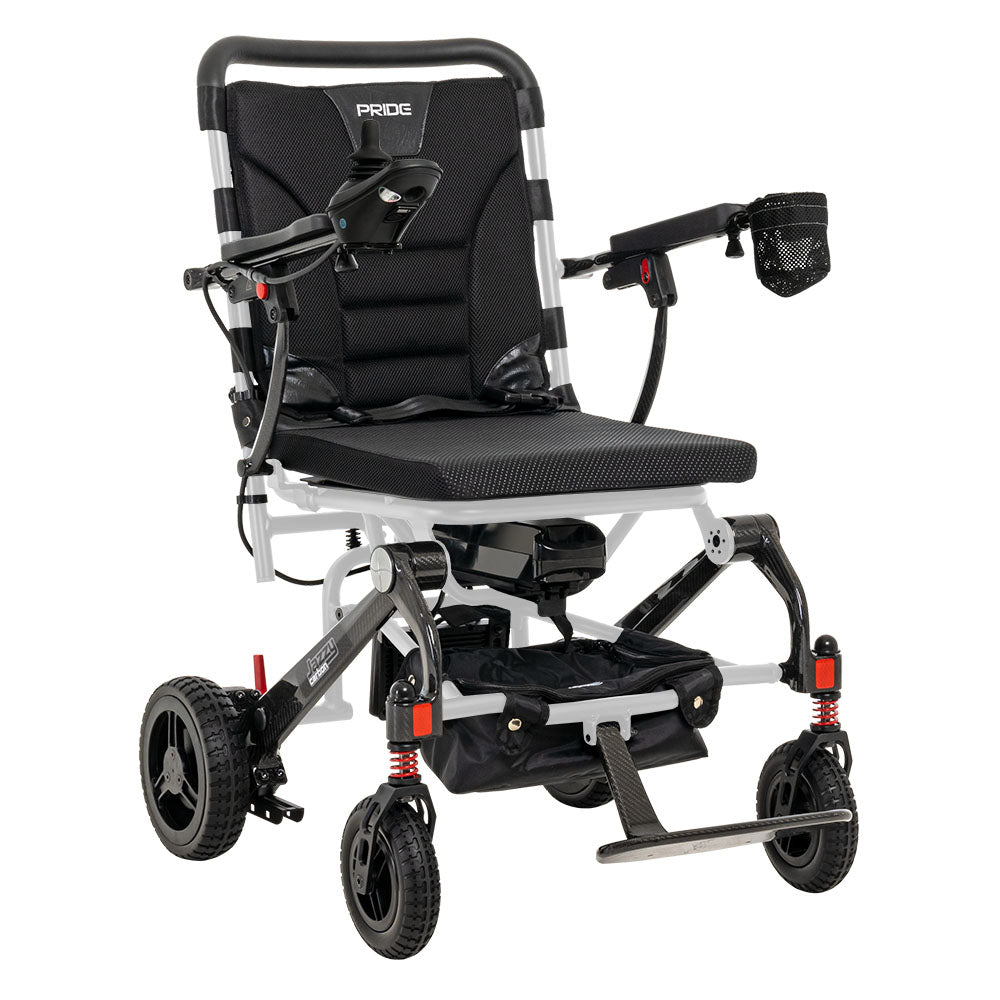

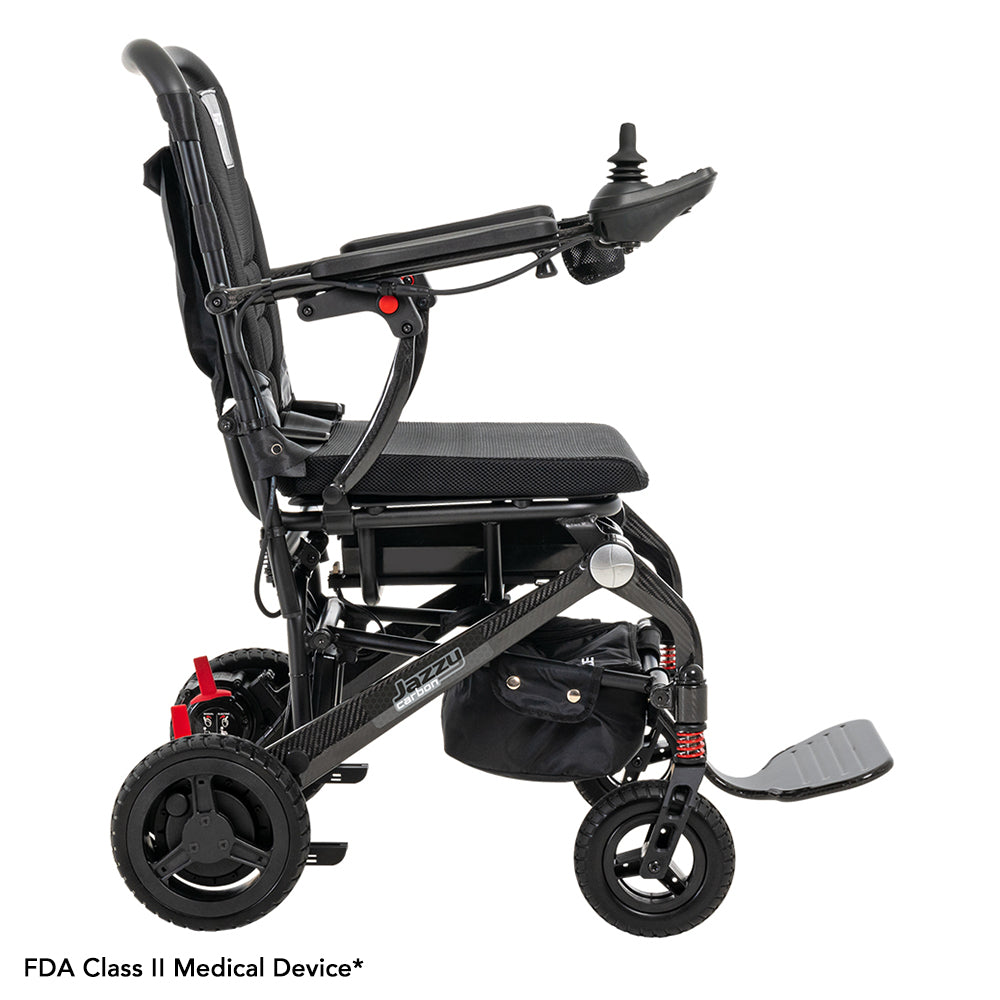

Jazzy® Carbon
Jazzy® Carbon
Couldn't load pickup availability
SKU:JAZZY CARBON-1
Simply fold and travel with the Jazzy® Carbon. It was built for travel.
- 300 lb weight capacity
- Removable joystick for transporting with built in USB charger.
- Airline compliant lithium battery*.
- Front suspension for a smooth ride.
- Ultra-lightweight, carbon fiber frame specifically designed for traveling.
- Compact base easily folds and unfolds for easy transport in a few easy steps.
- Padded seat back with storage pocket and soft, removable seat cushion for all-day comfort.
- Free-wheel levers to easily disengage the hand control allowing this lightweight power chair to be pushed like a manual chair.
- Included under-seat storage and adjustable lap belt.
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments. K0899 Power Mobility Device not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply.*
| Model | Jazzy Carbon |
|---|---|
| Weight Capacity | 300 lbs. |
| Maximum Speed* | Up to 3.7 mph |
| Ground Clearance | 2” |
| Turning Radius** | 24” |
| Overall Length** | 37” |
| Overall Width | 24” |
| Seat-to-Floor Range | 20.25” with cushion, 18.75” without cushion |
| Front Casters | 7” solid |
| Drive Wheels | 8.5” solid |
| Suspension Type | Front suspension |
| Range Per Charge* | Up to 9.3 miles |
| Total Weight with Batteries | 43.6 lbs. |
| Heaviest Piece When Disassembled | 39.6 lbs. (base) |
| Standard Seat | 17” x 17” black foam |
| Motor Output | 24v/250W brushless motors |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | 24V 12AH (288WH) lithium-ion |
| Battery Charger | 2 amp, lithium-ion off-board |
| Warranty | Frame: Lifetime limited Electrical Control/Lever System, Motor/Drive System, Bearing Sleeve, and Battery: 1-year limited |
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
*Speed & range vary with user weight, terrain type, battery charge, battery condition, and tire pressure.
**Due to manufacturing tolerances and continual product improvement, this specification is subject to a variance of + or - 3%.
