Home Harmar AL580-HDX High Capacity Lift for Large Mid-Wheel Power Wheelchairs

Click to zoom

Harmar

Harmar AL580-HDX High Capacity Lift for Large Mid-Wheel Power Wheelchairs

Priced for your home, installation included

Need more lifting power for a heavier mid-wheel powerchair? The Harmar AL580-HDX high capacity lift is designed to transport nearly any heavy mid-wheel powerchair with wheel sizes ranging from 10 to 14 inches, up to 450 lbs.

Installed and serviced in Georgia
In business since 1990
450 lb lifting capacity
27" wide usable platform
4 Q'Straint retractors + hold-down arm
3-year transferable parts warranty

Licensed & Insured Factory-trained, certified technicians Reviews on Google BBB Accredited Business

Brand: Harmar

Type: Wheelchair Lift

SKU: AL580-HDX

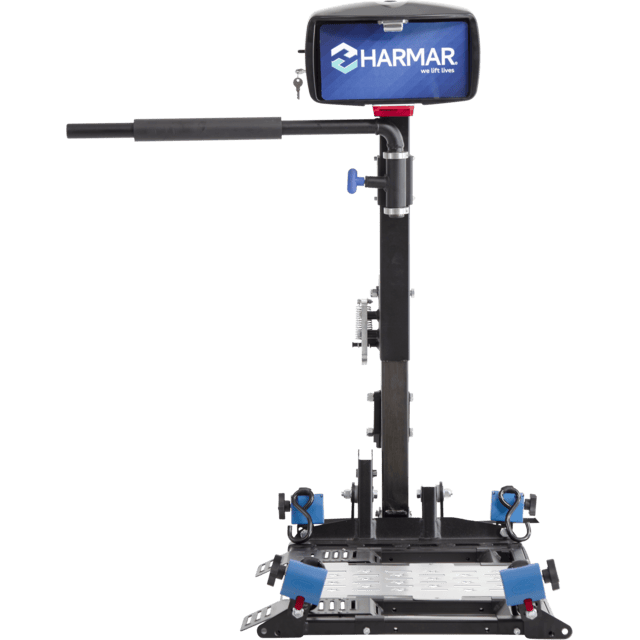

About the Harmar AL580-HDX High Capacity Lift for Large Mid-Wheel Power Wheelchairs

The platform gives 27 inches of usable width on a 23 by 33 inch footprint. Four Q'Straint retractors plus a padded hold-down arm secure the chair, and wheel cradles help position it. Lifting and folding are fully powered.

This is a hitch-mounted lift, rated for a Class III or greater hitch, with an installed weight of 92 lb. Harmar lists it as compatible with a variety of SUVs, trucks and crossovers, and asks you to confirm your car's compatibility with your Harmar dealer. Options include a battery pack, a wheelchair cover, a license plate riser and a swing-away.

Because the chair rides on the outside rear of the vehicle, the cargo area stays free for everything else. Custom Mobility installs vehicle lifts in Georgia with its own technicians and provides service in Georgia after installation. If your chair is a large mid-wheel model, call us and we will look at the details together.

Vehicle Lifts We Have Installed

Photos from our own jobs. Not every photo shows this model.

Mason Irby setting up a vehicle lift platform at the back of a red pickup truck

How The Work Happens

Five steps. You can stop at any of them, and nothing is charged until you have said yes to a written scope.

You tell us what is difficult
Not what product you think you need. The stairs, the front step, the bath, getting into the car. Working out the product is our job.
A call, not a sales pitch
We come out and measure
On site, at your address, free. We check the space, the power, and the structure, and we talk through how the room actually gets used.
Free, and no obligation
You get it in writing
An itemized scope and a price, with the lead time stated honestly. The price you agree to is the price of the job. Take as long as you like with it.
The price does not move
Our technicians install it
Our own people, not a subcontractor, who stay until everyone who has to operate it can operate it confidently.
Our own crews
We service it afterward
The company that installed it is the company that maintains it. You are not handed to somebody else once the invoice clears.
Same company, years later

Installation and service in Georgia

Priced for your home, installation included. Installation and service are in Georgia.

Installed by our own technicians, from our base in Athens.
We service what we sell. The person who comes back is from the same company as the person who installed it.
Preventive maintenance agreements are available on anything we install.

Tell us about the vehicle and the device, and a mobility specialist will confirm the fit before anything is ordered.

Request your quote

Service and repair

Key specs

Lifting capacity: 450 lb
Accommodates: mid-wheel drive power wheelchairs with 14" drive wheels
Installed weight: 92 lb
Platform size: 27" wide usable (23" x 33" footprint)
Hitch class: III or greater
Powered: lifting and folding
Vehicles: a variety of SUVs, trucks, crossovers
Securement: padded hold-down arm, wheel cradles, 4 Q'Straint retractors

Specifications as published by Harmar: maker's spec sheet.

Warranty

The maker's warranty for this model.

Parts (material, mechanical, electrical): 3 years
Transferable when the application is approved by Harmar's Compatibility Calculator
Not covered: labor, batteries, paint, rust and covers
Installed by an Authorized Harmar Distributor or Certified Harmar Installer
Certificate returned to Harmar within 10 days of installation
Defects in the vehicle are not covered

Repairs and replacements under warranty are processed in coordination with the manufacturer.

Full warranty terms from Harmar

Why buy from Custom Mobility

Custom Mobility is My Mobility.

Since 1990The company was founded in 1990 and has operated continuously since.
Georgia installation and serviceOur technicians are mobile and come to your home, facility, or fleet yard anywhere in Georgia.
Ships across the lower 48Products ship across the lower 48.
We service what we sellWith our own technicians, from the same company that sold it.
A showroom in AthensWalk-ins are welcome at 315 Whitehead Road.

Common questions

Will this work with my vehicle?

That depends on the vehicle and the equipment. We check compatibility before you order anything, which is exactly the step that goes wrong when it is skipped.

Will it fit in my car?

Ask this at the start rather than after delivery. Folding and travel models go in a trunk. A full-size chair needs a vehicle lift or a conversion, and we do those too.

Do I have to buy a van?

Usually not, and most people assume they do. Hand controls, a lift, or a turning seat solve a great many situations for a fraction of a conversion. Ask before you go vehicle shopping.

Will this affect my vehicle warranty?

Properly fitted equipment from established manufacturers does not generally affect it, though we would not ask you to take our word over your dealer's. We will tell you exactly what we are fitting and how.

Do you service what you sell?

Yes, with our own technicians. The person who comes back is from the same company as the person who installed it.

Will you service equipment somebody else installed?

Often, depending on the platform and whether we hold the relationship with that manufacturer. Tell us what you have.

All questions
